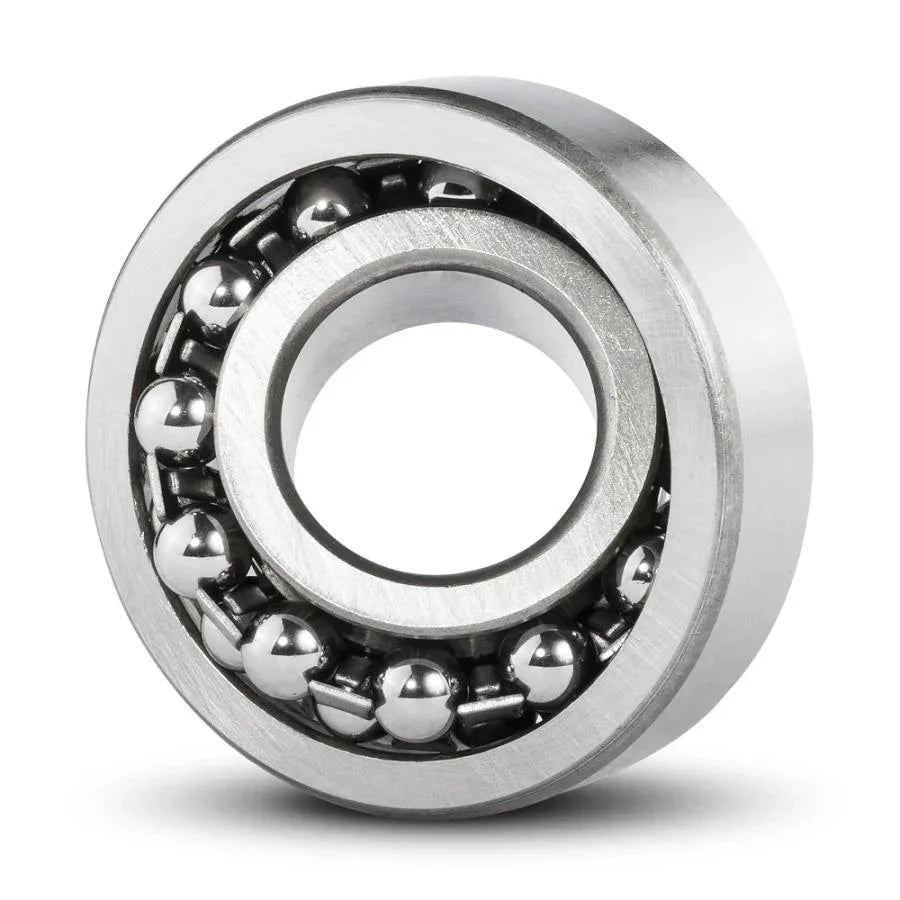

Self-Aligning Ball Bearings
Self-aligning ball bearings are designed with two rows of balls and a common spherical raceway in the outer ring. This allows the bearing to automatically adjust and compensate for misalignment or shaft deflection, maintaining smooth operation even when the shaft is not perfectly aligned with the housing. They are commonly used in applications where shaft bending or mounting errors may occur.

Key Features:

Two rows of balls with a common spherical outer raceway
Automatically compensates for shaft misalignment and deflection
Handles radial loads and limited axial loads in both directions
Low friction and suitable for moderate-speed applications
Available with cylindrical or tapered bores for easy mounting
Requires less maintenance due to self-aligning capability
Commonly used in agricultural machinery, conveyors, and textile equipment

SKU	1211-NSK
Brand	NSK
Shipping Weight	0.7050kg
Seal	Open
Norm.	DIN 630
Min. Operating Temperature (deg. C)	-40°C
Max. Operating Temperature (deg. C)	+150°C
Lifetime Lubricated	No
Type Of Lubrication	Oiled
Cage Material	Sheet Steel
Rolling Element Material	Rolling Bearing Steel
Ring Material	Rolling Bearing Steel
Grade	Premium
Speed Rating	V (Normal)
Precision Class	P0 (Normal Precision)

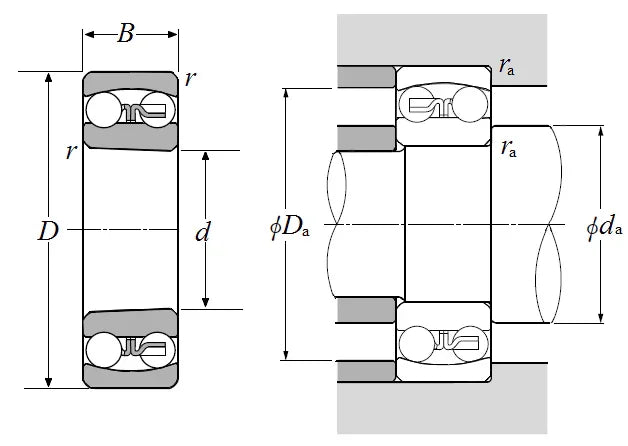

(B) Width (mm)	21
(D) Outside Ø (mm)	100
(d) Inside Ø (mm)	55
Radial Internal Clearance	CN (Normal)
Bore	Cylindrical

1211 NSK Self Aligning Ball Bearing Open (55x100x21) Made in JAPAN
