DBC0068F1V3-1

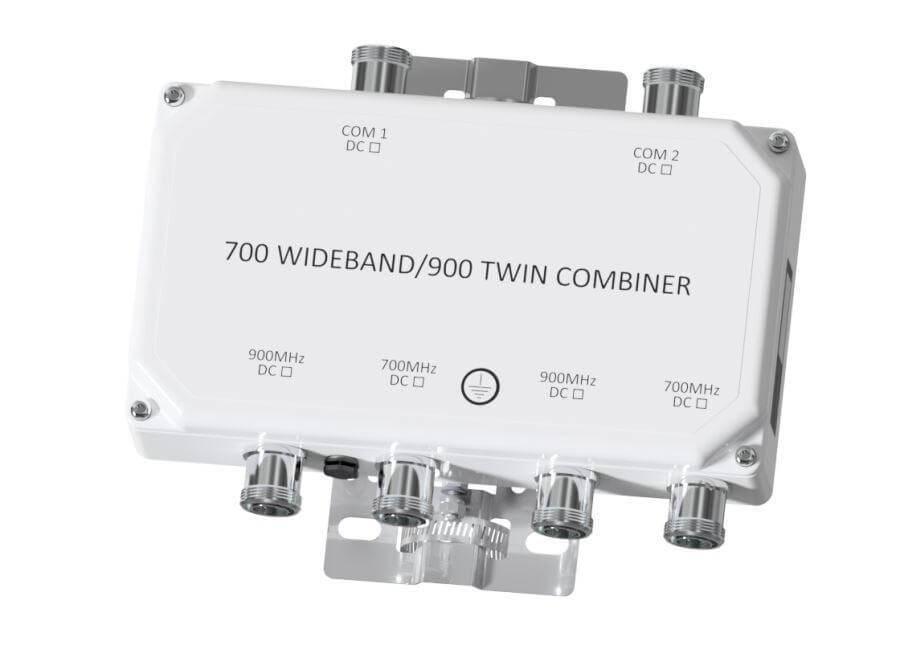

TWIN DIPLEXER 698-803/898.4-951.8

Kaelus world-proven outdoor solutions provide strong RF performance coupled with rugged operation. The DBC0068 provides the following features and benefits:

FEATURES

Enable feeder sharing using 700 and 900 cellular bands
Low passive IM performance
Offers low insertion loss and high isolation
Multiple DC by-pass/AISG configurations available
Twin unit wall or pole mounting
Outdoor/indoor

TECHNICAL SPECIFICATIONS

PORT NAME

698-803

898.4-951.8

Passband

698 - 803MHz

898.4 - 951.8MHz

Insertion loss

0.3dB typical

0.5dB typical

Return loss

18dB minimum

Maximum input power

160W (average) / 1.6kW (PEP)

Attenuation

898.4 - 951.8MHz = 53dB minimum
870 - 890MHz = 40dB minimum

698 - 803MHz = 55dB minimum
870 - 890MHz = 40dB minimum

ELECTRICAL

Impedance

50Ohms

Intermodulation products

-155dBc maximum all ports with 2 x 20W carriers

DC / AISG

Passband

0 - 3MHz

Insertion loss, single DC/AISG pass

1dB maximum

Return loss, single DC/AISG pass

12dB minimum

Insertion loss, two DC/AISG pass

4.5dB maximum

Return loss, two DC/AISG pass

12dB typical

Input voltage range

±30V

DC current rating

2A continuous, 4A peak

ENVIRONMENTAL

For further details of environmental compliance, please contact Kaelus.

Temperature range

-20ºC to +65ºC | -4ºF to +149ºF

Ingress protection

IP67, Outdoor unit

Lightning protection

RF: ±5kA maximum (8/20us)

MTBF

>1,000,000 hours

MECHANICAL

Dimensions H x D x W

300 x 254 x 99.6mm | 11.81 x 10 x 3.92in

Weight

6.7kg | 14.8lbs

Finish

Painted, light grey (RAL7035)

Connectors

DIN 7-16 (F) x 6 long neck

Mounting

Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles

ELECTRICAL BLOCK DIAGRAM

MECHANICAL BLOCK DIAGRAM
