LEICA DD130 Cable, Pipe Avoidance Locator system Kit - Digi system
$3,999.00
LEICA DD130 Cable, Pipe Avoidance Locator system Kit - Digi system
Product Description
LEICA DD130 CABLE & PIPE AVOIDANCE LOCATOR KIT
The LEICA DD130 is a professional avoidance locator designed for simple and accurate utility detection in many complex site environments.
Ensure safety on-site with the Leica DD130 Utility Locator. This tool uses cutting-edge technology for precise and reliable service tracing.
Included Leica DA signal transmitters apply a clear signal onto underground cables or pipes. This helps find assets that lack detectable energy.
These compact and robust DA signal transmitters are easy to use. They provide reliability for all professional excavation and site teams.

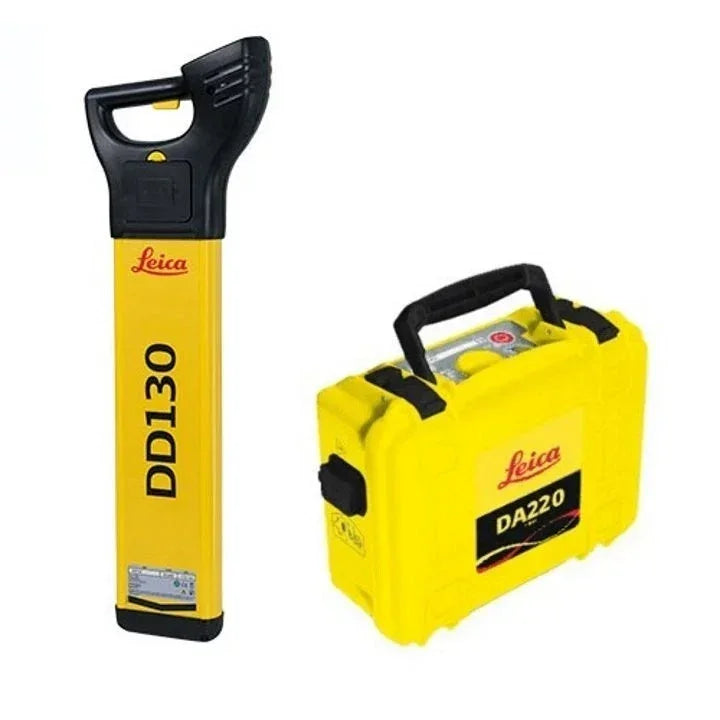

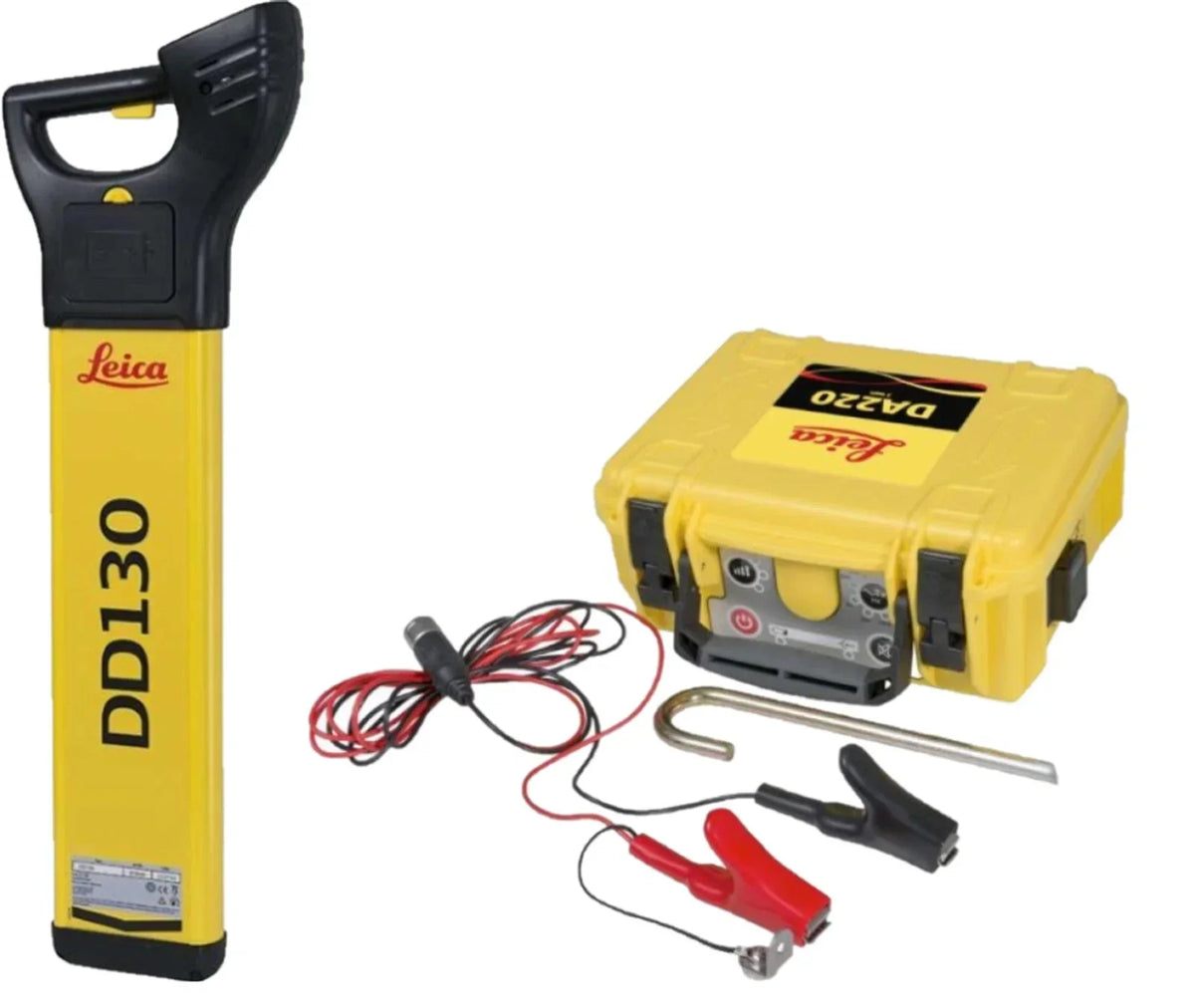

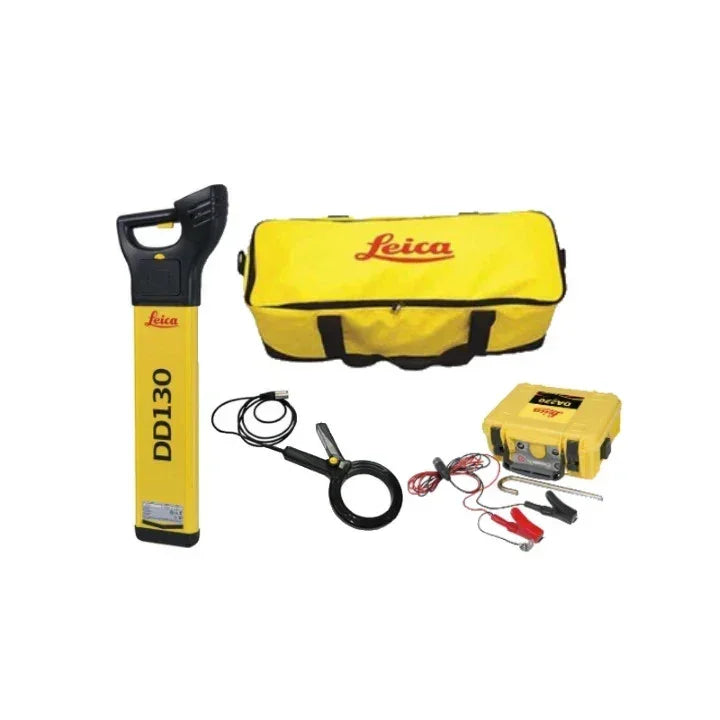

This comprehensive Kit item is made up of the following essential products:
- Leica DD130 Underground Service Locator with digital display
- DA220 1-Watt Signal Generator with Earth Spike, Crocodile clip connector & cables
- Transmitter 100mm (5" Signal Clamp) 2m
- Locator System Carry Bag
LEICA DD130 PIPE AVOIDANCE LOCATOR (50HZ)
PN: LG872940. The new LEICA DD130 simplifies the utility tracing process. It streamlines the workflow for all modern work crews in the field.
For professionals who need to find buried utilities, this pipe avoidance locator features increased depth detection for better accuracy.
The DD130 delivers consistent and precise results. It provides the user confidence needed for safe and efficient ground breaking tasks.
Handheld multi-frequency underground service locator
The Leica DD100 Series cable locators feature advanced automatic controls for intuitive operation.
Unmatched ease of use
With Automatic Pinpointing, there is no need to manually adjust the sensitivity of your avoidance locator unit at any time.
This ensures you are using optimum sensitivity for the environment. It helps in reducing human error and saving valuable worker time.
AVOIDANCE LOCATOR FEATURES
- Automatic pinpointing
- Power, Radio, Auto modes
- Transmitter, 33kHz, 8kHz
- Depth detection up to 3 meters (10 feet)
- Good-to-Go™ Health Check and Start up test
- Extended trace range with additional 512Hz, 640Hz frequencies
- Signal current measurement
- Increased depth detection up to 10 metres (33 feet)
- IP54 rating - protection from dust and water
SPECIFICATIONS
| MODE | DD130 |
| POWER | 50Hz model or 60Hz model |
| RADIO | 15kHz to 60kHz |
| AUTO | Power, Radio, 33kHz |
| TRANSMITTER MODES | 32.768 (33) kHz 8.192 (8) kHz 512 Hz 640 Hz |
| DEPTH RANGE | Line 0.3m to 3m / 1ft to 10ft Sonde 0.3m to 9.99m / 1 ft to 32.77 ft |
| DEPTH ACCURACY* | 10% |
| ENVIRONMENTAL STANDARD | IP54 |
| OPERATING TEMPERATURE | -20° C to +50° C -4° F to +122° F |
| BATTERY | 6 x LR6 (AA) Alkaline |
| BATTERY OPERATING TIME** | 15 h |
| DIMENSIONS (HXWXD) | 760 x 250 y 85mm (30 x 10 x 3.4 inches) |
| WEIGHT WITH BATTERIES | 2.7Kg 5.95 lbs |

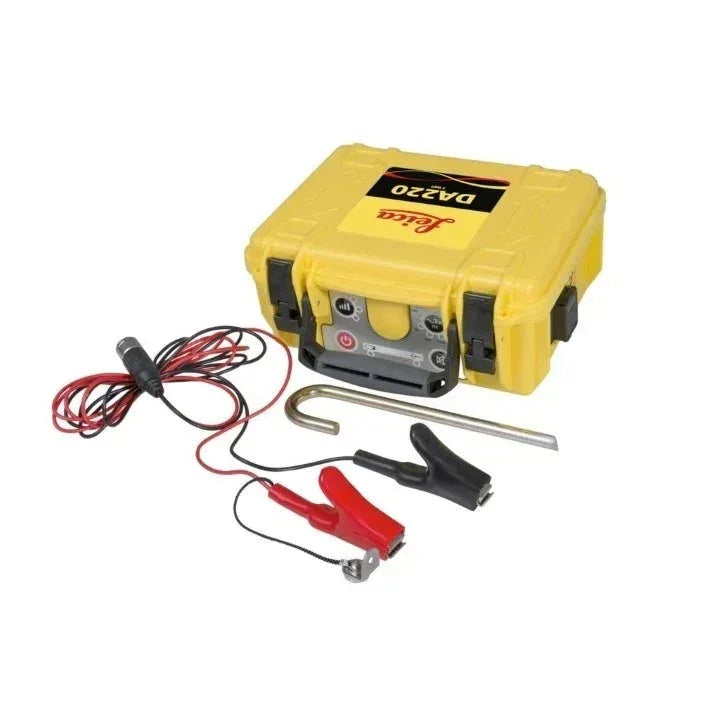

LEICA DA220 1 WATT TRANSMITTER
PN: LG850272. Leica DA signal transmitters apply a signal onto underground cables or pipes that may not carry a detectable signal.
INDUCTION FREQUENCIES: 33 / 8 kHz. OUTPUT: 1 Watt. CONNECTION FREQUENCIES: 131 / 33 / 8 kHz. RATING: IP67. TEMP: -20 to +50 °C. BATTERY: Li-ion.Contact us
Brand: Leica. Model: LEICA DD130. Product: Cable, Pipe Avoidance Locator. MPN: DIGISYSTEM. Origin: UK.More Details
