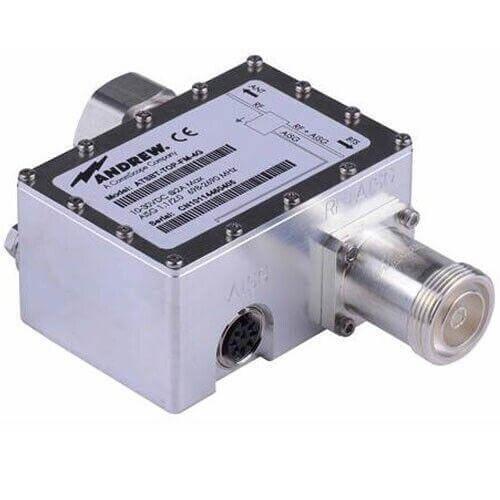

Commscope ATSBT-TOP-FM-4G TELETILT Top Smart Bias Tee Commscope ATSBT-TOP-FM-4G
$199.87
Commscope ATSBT-TOP-FM-4G TELETILT Top Smart Bias Tee Commscope ATSBT-TOP-FM-4G
Product Description
eatures:Injects AISG power and control signals onto acoaxial cable line Reduces cable and site lease costs byeliminating the need for AISG home run cables AISG 1.1 and2.0 compliant Operates at 10-30 Vdc WeatherproofAISG connectors Intuitive schematics simplify and ensureproper installation Enhanced lightning protection plusgrounding stud for additional surge protection 7-16 DINfemale connector (BTS) 7-16 DIN male connector (ANT)
| Brand | COMMSCOPE |
| Operating Frequency Band | 694-2690 MHz |
| Electrical Specifications | |
|---|---|
| Impedance | 50 ohm |
| Protocol | AISG 1.1 | AISG 2.0 |
| Mechanical Specifications | |
| AISG Input Connector | 8-pin DIN Female |
| Electrical Specifications | |
| 3rd Order IMD | -158.0 dBc |
| Mechanical Specifications | |
| Material Type | Aluminum |
| Electrical Specifications | |
| Antenna Interface Signal | dc Blocked | RF |
| BTS Interface Signal | AISG data | dc | RF |
| Voltage Range | 10-30 Vdc |
| Power Consumption, Max | 0.6 W |
| RF Power, Max | 250 W @ 1850 MHz | 500 W @ 850 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Mechanical Specifications | |
| Antenna Interface | 7-16 DIN Male |
| BTS Interface | 7-16 DIN Female |
| Lightning Surge Capability | 5 times @ -3 kA | 5 times @ 3 kA |
| Color | Silver |
| Electrical Specifications | |
| EU Certification | CE |
| Smart Bias Tee type | 10-30 V Top |
| Electrical Specifications | |
| VSWR | Return Loss | 1.17:1 | 22 dB, typical |
| Insertion Loss, typical | 0.1 dB |
| Mechanical Specifications | |
| Grounding Lug Thread Size | M8 |
| Weight | 1.89 lbs |
