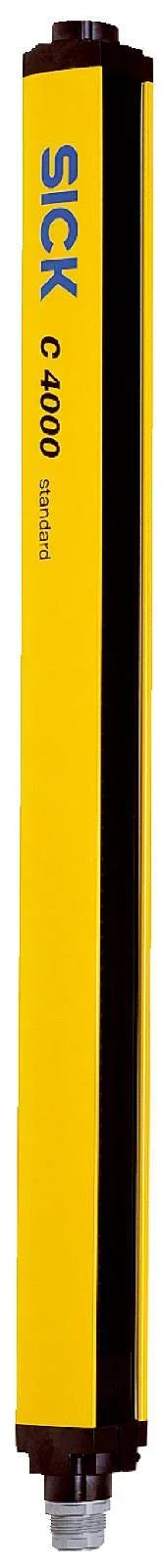

SICK C 4000 standard safety light curtain for industrial automation and machinery protection
Technical diagram of DIN 43651 plug and M26 x 11 + FE cable sockets with crimp contacts
SICK C 4000 standard safety light curtain for industrial automation and machinery protection
Technical diagram of DIN 43651 plug and M26 x 11 + FE cable sockets with crimp contacts

SICK C4000 Resolution 30MM Receiver 750MM Safety Light C40E-0703CD010 (1022427

Regular price $1,999.00 Save $-1,999.00


/
sold in last hours
Only 1 left - Selling fast
Add to Wishlist Ask A Question
Estimated delivery between - .

SICK C4000 Resolution 30MM Receiver 750MM Safety Light C40E-0703CD010 (1022427

$1,999.00

SICK C4000 Resolution 30MM Receiver 750MM Safety Light C40E-0703CD010 (1022427

Product Description

7% discount if you purchase directly from us on internet Australian Empire shop Discount code (empire7)
Application Normal industrial environment
System part Receiver
Resolution 30 mm
Scanning range 21 m
Protective field height 750 mm
Response time 11 ms 1)
Synchronization Optical synchronisation

1) Without beam coding, without blanking, no cascaded systems. Other response times see operating instructions.

Type Type 4 (IEC 61496-1)
Safety integrity level SIL 3 (IEC 61508)
Category Category 4 (EN ISO 13849)
Performance level PL e (EN ISO 13849)
PFHD (mean probability of a dangerous failure per hour)

15 * 10-9 (EN ISO 13849)

43 * 10-9 (EN ISO 13849)

63 * 10-9 (EN ISO 13849)
TM (mission time) 20 years (EN ISO 13849)
Safe state in the event of a fault At least one OSSD is in the OFF state.
Protective operation ✔
Restart interlock ✔ External
External device monitoring (EDM) ✔ Activated
Beam coding ✔ Uncoded
Configurable scanning range ✔ 5 m ... 19 m
Safe SICK device communication via EFI ✔
System connection Hirschmann male connector M26, 12-pin
Direction of cable connection Straight
Conductor cross section 0.75 mm²
Permitted cable length 50 m 1)
Configuration connection Female connector M8, 4-pin
Configuration method PC with CDS (Configuration and Diagnostic Software)
Display elements 7-segment display

1) Depending on load, power supply and wire cross-section. The technical specifications must be observed.

Protection class III (IEC 61140)
Supply voltage VS 24 V DC (19.2 V ... 28.8 V) 1)
Residual ripple ≤ 10 % 2)
Output signal switching devices (OSSDs)
Type of output 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 3)
ON state, switching voltage HIGH 24 V DC (VS – 2.25 V DC ... VS)
OFF state, switching voltage LOW ≤ 2 V DC
Current-carrying capacity per OSSD ≤ 500 mA

1) The external voltage supply must be capable of buffering brief mains voltage failures of 20 ms as specified in EN 60204-1. Suitable power supplies are available as accessories from SICK.

2) Within the limits of VS.

3) Applies to the voltage range between –30 V and +30 V.

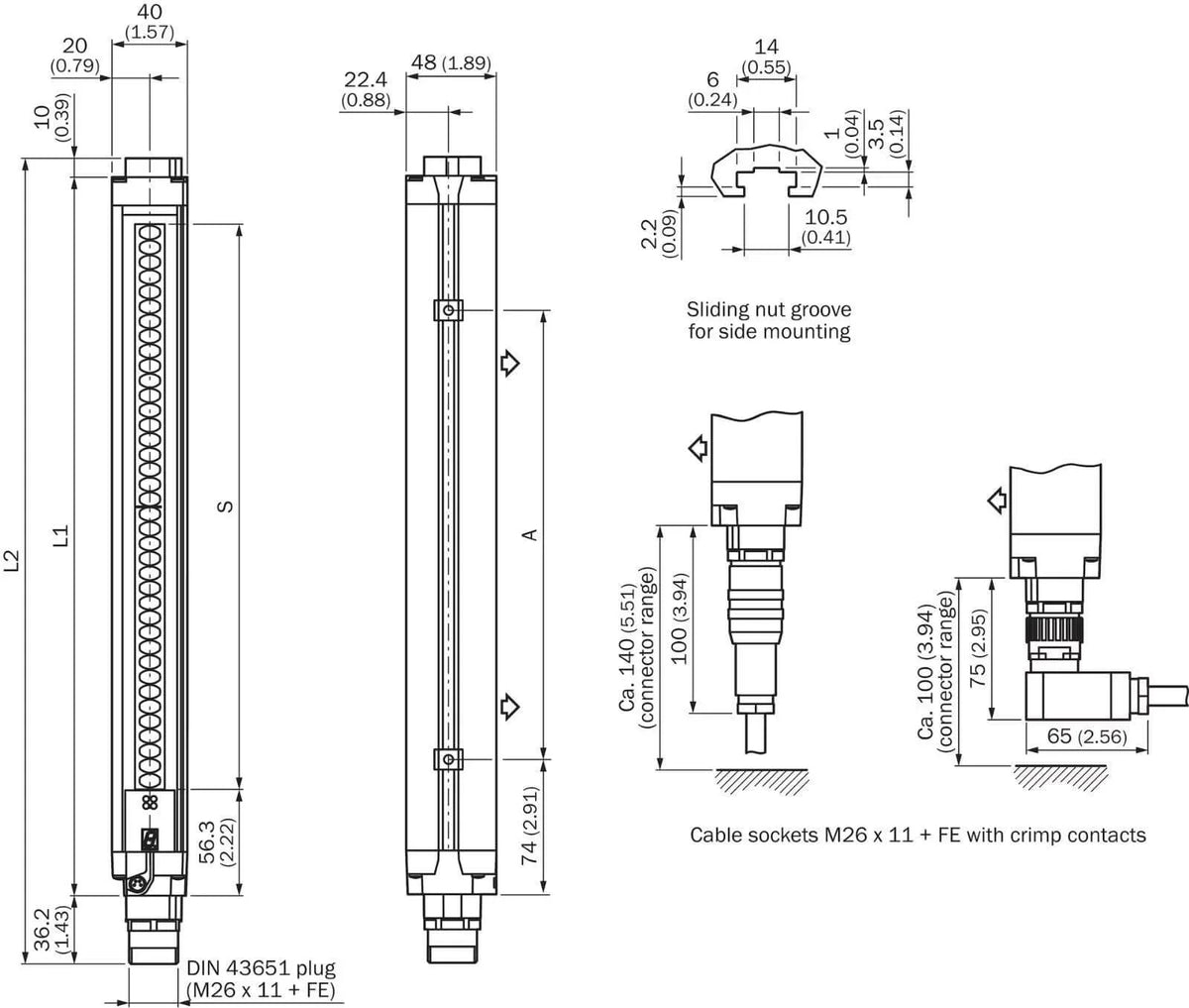

Dimensions See dimensional drawing
Housing cross-section 48 mm x 40 mm
Housing material Aluminum extruded profile
Weight 1,700 g
Enclosure rating IP65 (EN 60529)
Ambient operating temperature 0 °C ... +55 °C
Storage temperature –25 °C ... +70 °C
Air humidity 15 % ... 95 %, Non-condensing
Vibration resistance 5 g, 10 Hz ... 55 Hz (EN 60068-2-6)
Shock resistance 10 g, 16 ms (EN 60068-2-27)
