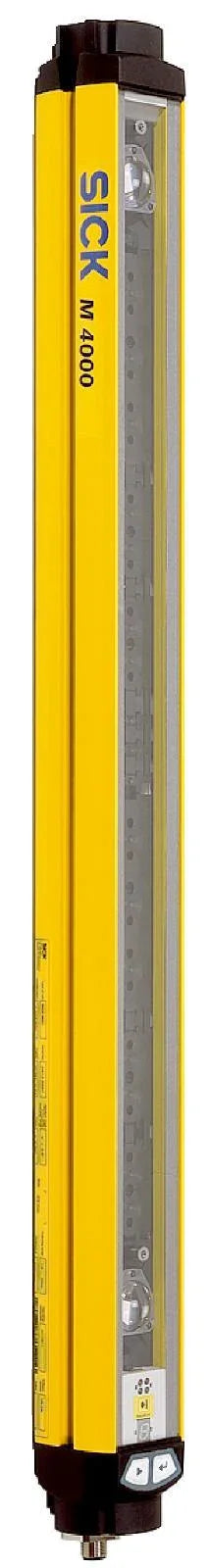

SICK M4000 safety light curtain for industrial machinery protection

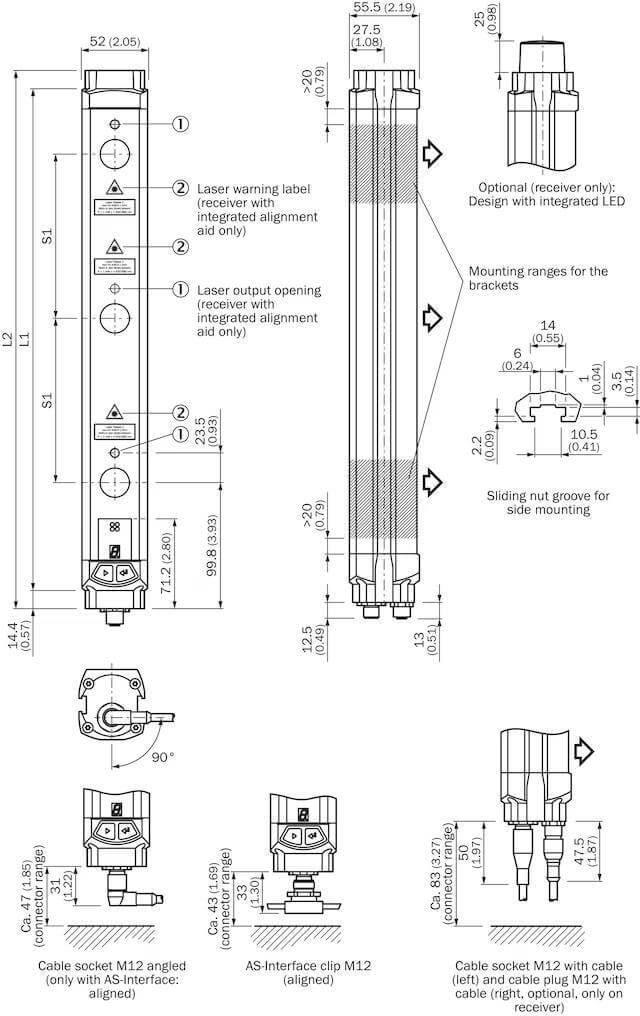

Technical diagram of industrial sensor with M12 connectors, laser output, and mounting specs for automation systems
SICK M4000 safety light curtain for industrial machinery protection
Technical diagram of industrial sensor with M12 connectors, laser output, and mounting specs for automation systems

SICK M4000 6 Beams Receiver Safety Light Curtain M40E-062200RR0 (1200025

Regular price $1,999.00 Save $-1,999.00


/
sold in last hours
Only 2 left - Selling fast
Add to Wishlist Ask A Question
Estimated delivery between - .

SICK M4000 6 Beams Receiver Safety Light Curtain M40E-062200RR0 (1200025

$1,999.00

SICK M4000 6 Beams Receiver Safety Light Curtain M40E-062200RR0 (1200025

Product Description

7% discount if you purchase directly from us on internet Australian Empire shop Discount code (empire7)
TypeType 4 (IEC 61496-1)Safety integrity levelSIL 3 (IEC 61508)CategoryCategory 4 (EN ISO 13849)Performance levelPL e (EN ISO 13849)PFHD (mean probability of a dangerous failure per hour)6.6 x 10-9 (EN ISO 13849)TM (mission time)20 years (EN ISO 13849)Safe state in the event of a faultAt least one OSSD is in the OFF state.
nclosure rating IP65 (EN 60529)
Ambient operating temperature –30 °C ... +55 °C
Storage temperature –30 °C ... +70 °C
Air humidity 15 % ... 95 %, Non-condensing
Shock resistance 10 g, 16 ms (IEC 60068-2-29)
Protection class III (IEC 61140)
Supply voltage VS 24 V DC (19.2 V DC ... 28.8 V DC) 1)
Residual ripple ≤ 10 % 2)
Power consumption ≤ 0.6 A 3)
Output signal switching devices (OSSDs) 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 4)
ON state, switching voltage HIGH 24 V DC (VS – 2.25 V DC ... VS)
OFF state, switching voltage LOW ≤ 2 V DC
Current-carrying capacity per OSSD ≤ 500 mA

1) The external voltage supply must be capable of buffering brief mains voltage failures of 20 ms as specified in EN 60204-1. Suitable power supplies are available as accessories from SICK.

2) Within the limits of VS.

3) Without load.

4) Applies to the voltage range between –30 V and +30 V.

Beam coding ✔ Uncoded
Sender test ✔ Deactivated
Configurable scanning range ✔

System connection Male connector M12, 8-pin
Permitted cable length 15 m 1)
Permitted cross-section ≥ 0.25 mm²
Configuration method Configuration buttons
Display elements

LEDs

7-segment display

EU declaration of conformity ✔
UK declaration of conformity ✔
ACMA declaration of conformity ✔
MAR declaration of conformity ✔
China-RoHS ✔
ULus approval ✔
cUL approval ✔
EC-Type-Examination approval ✔


Without additional options
