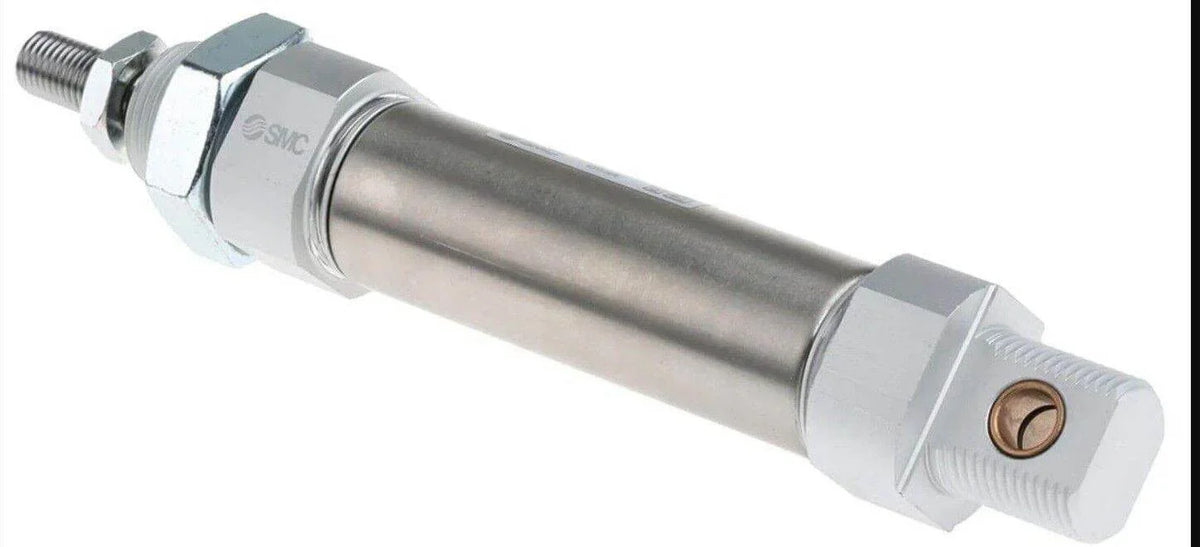

SMC Pneumatic Piston Rod Cylinder 25mm Bore 50mm Stroke C85 Series Double ACTING
$99.87
SMC Pneumatic Piston Rod Cylinder 25mm Bore 50mm Stroke C85 Series Double ACTING
Product Description
Product Details
SMC C85 Pneumatic Cylinders
SMC C85 cylinders conform to ISO 6432 and CETOP RP52P standards, offer 100% mounting repeatability accuracy, incorporate abrasion-resistant seals, and a replaceable piston rod seal. The cylinders are corrosion-resistant, with the barrel and piston rod manufactured from stainless steel, double-swaged anodised aluminium end caps, and offer an exceptional service life. The double-swaged end caps provide an air tight seal. The cylinders offer high dust resistance through the use of a specially-designed and unique dust seal, making SMC C85 pneumatic cylinders suitable for use in extremely dusty environments. A low friction design that incorporates elastomer cushion seals allows the the cylinders to operate at speeds up to 1500 mm/s. C85 cylinders are suppied with a piston rod locknut and nose-mounting nut; installation is made easy through the use of large spanner flats and the space-saving design.
Specifications
| Attribute | Value |
| Stroke | 50mm |
| Bore | 25mm |
| Action | Double |
| Manufacturer Series | C85 |
| Cushioning Type | Rubber |
| Dimensions | 33.5 (Dia.) x 187mm |
| Length | 187mm |
| Absolute Maximum Pressure | 1.5MPa |
| Maximum Operating Pressure | 1 MPa |
| Weight | 258g |
| Maximum Operating Temperature | +60°C |
| Diameter | 33.5mm |
| Minimum Operating Temperature | -10°C |
