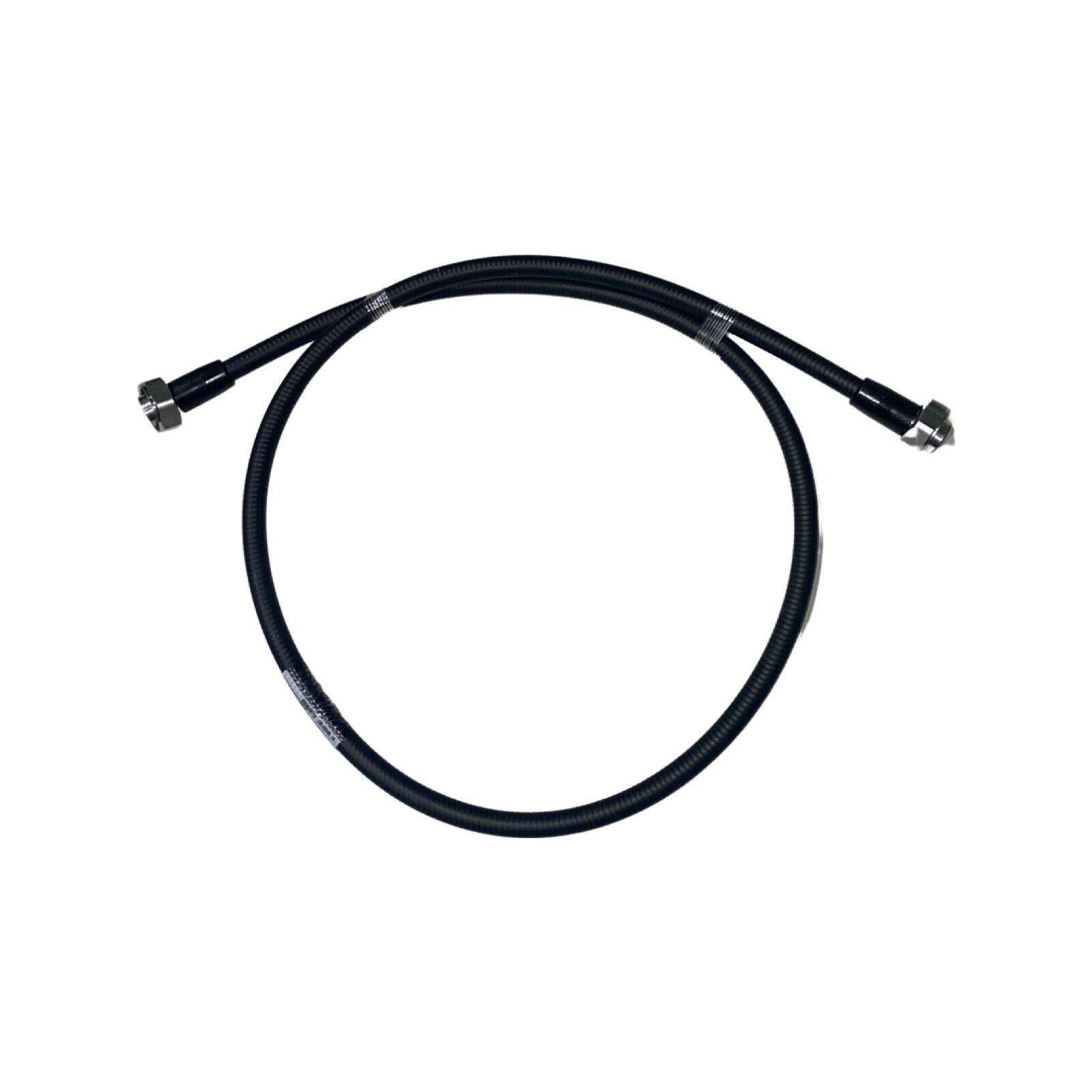

4.92ft Andrew HELIAX CATVR SureFlex® F4R-HPDMDM-1M5 , 7-16 DIN

4.92ft Andrew HELIAX CATVR SureFlex® F4R-HPDMDM-1M5 , 7-16 DIN

$59.87
$59.87
Sale Sold out
Shipping calculated at checkout.
Specifications

Product Classification

Product Type SureFlex® HP, HELIAX® performance
Product Series RSJ4-50

General Specifications

Body Style, Connector A Straight
Body Style, Connector B Straight

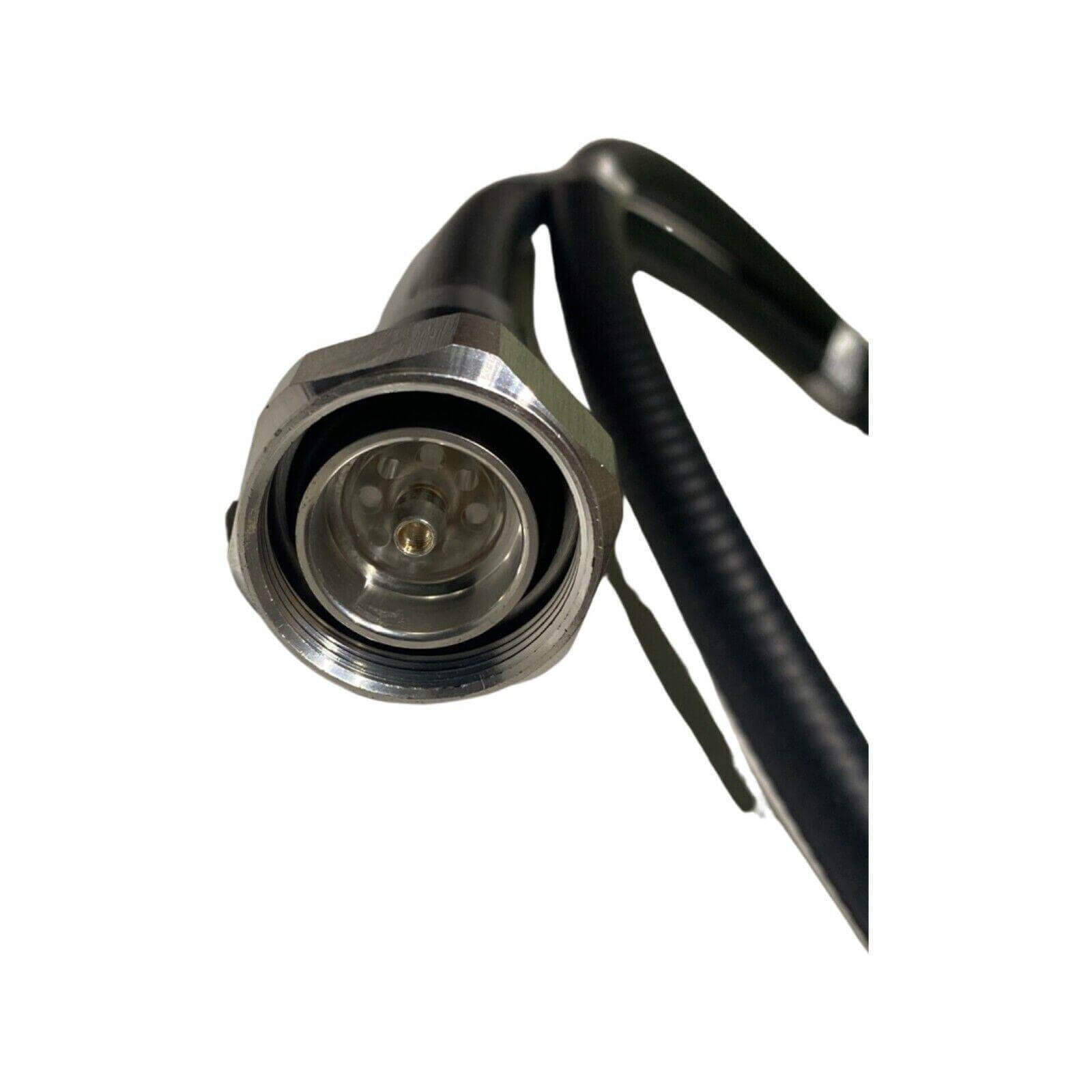

Interface, Connector A 7-16 DIN Male
Interface, Connector B 7-16 DIN Male
Specification Sheet Revision Level A

Dimensions

Length 1.5 m | 4.921 ft
Nominal Size 1/2 in

Electrical Specifications

3rd Order IMD Static Test Method Two +43 dBm carriers
3rd Order IMD typical -116 dBm
DTF, Connector A -34 dB
DTF, Connector B -34 dB

Return Loss/VSWR

Frequency Band VSWR, typical Return Loss, typical (dB)
680–960 MHz 1.070 30.00
1700–2200 MHz 1.070 30.00
2200–2700 MHz 1.110 26.00

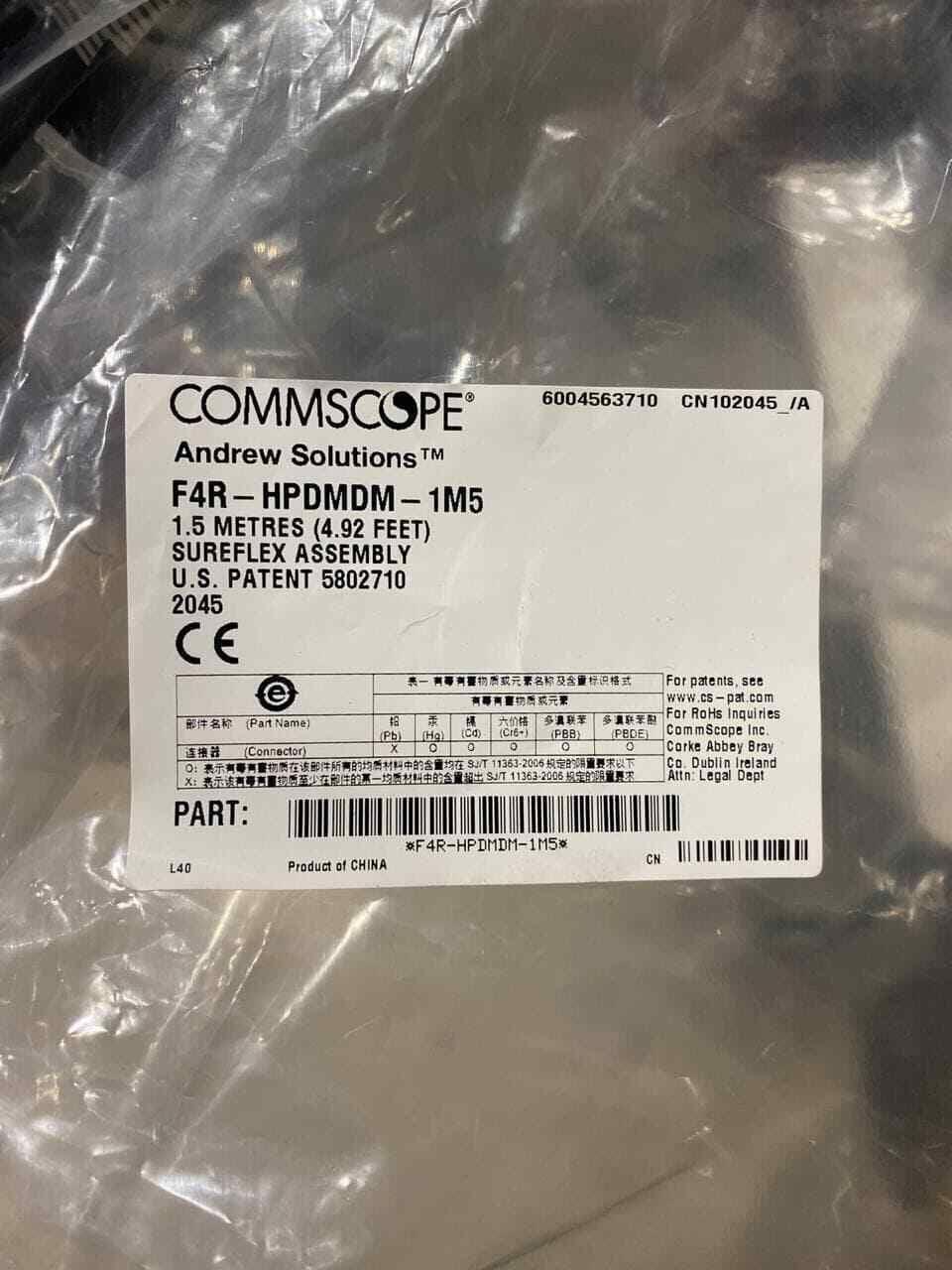

Jumper Assembly Sample Label

Click on image to enlarge.

Environmental Specifications

Immersion Test Method Meets IEC 60529:2001, IP68 in mated condition

Regulatory Compliance/Certifications

Agency Classification
ISO 9001:2015  Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
CHINA-ROHS  Below maximum concentration value
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
