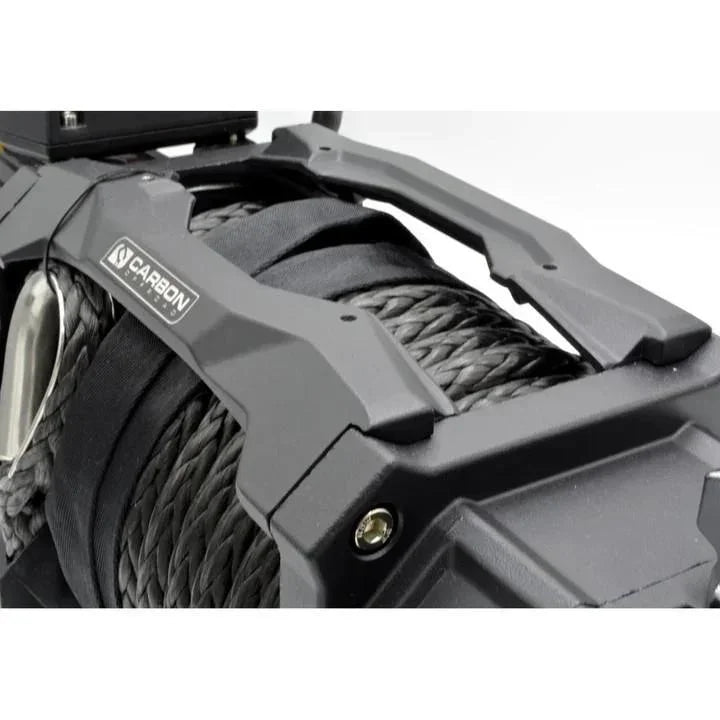

Carbon Offroad Tank 20000lb 4X4 Winch Kit | 12V IP68 | CW-TK20

Carbon Offroad Tank 20000lb 4X4 Winch Kit | 12V IP68 | CW-TK20

This Carbon Offroad Tank 20000lb Winch Kit provides unmatched 12V recovery power for heavy-duty 4X4 vehicles and commercial rigs.

Built to be indestructible, the TANK generation is virtually bulletproof. It offers a massive single line pull capacity exceeding 9 tonnes.

While it delivers immense pulling power, this unit avoids excessive weight. It is far more manageable than standard high-capacity equipment.

Weight Savings for Your Winch Setup

Carbon Offroad knows that building the ultimate off-road rig adds weight. Strong recovery gear is vital for solo touring and overlanding safety.

Modern technology replaces heavy steel castings here. The TANK uses CNC-machined billet alloys for the gearbox housing and main frame.

Steel is reserved for critical parts like the drum. This design features a cast alloy control box and a matching solid alloy fairlead.

Whether you were considering a chainsaw winch or a vehicle-mounted unit, this 20,000lb system provides professional-grade recovery results.

Unmatched Waterproofing Performance

Modern recovery gear must stay dry to function. The motor and drum frame are assembled as one unit and pressure tested to 20PSI.

This rigorous factory test simulates depths of 14 metres. Carbon Offroad guarantees your unit will not leak straight out of the box.

When comparing this to a runva winch or other famous brands, you will notice the superior engineering in the TANK waterproofing system.

Total Sealing for Extreme Conditions

The gearbox housing uses a two-stage sealing system. It combines mechanical seals with rubber o-rings for IP69K level protection.

This kit offers high-end performance. It is a rugged alternative for users who previously relied on a kings winch for basic tasks.

Heavy-Duty Mechanical Engineering

This model uses a 4-stage planetary gear train made from hardened steel. It shares the oversized internals of the Scout Pro series.

The gear train-connected brake system stops heat build-up. This prevents temperature damage to the included synthetic rope.

Flexible Control Box Placement

Mount the control box over the drum, over the motor, or remotely on a bar. Multiple brackets are included for custom fitting.

Warranty:

Limited Lifetime Geartrain / 5 Year Electrical.
