Clenergy kit for solar roof tin 8 panels tin kit with 35mm clamps K-SR-ECO 35

Clenergy kit for 8 panels installed on tin roof in portrait orientation with 35mm clamps.

Designed for ~1100mm feet spacing.

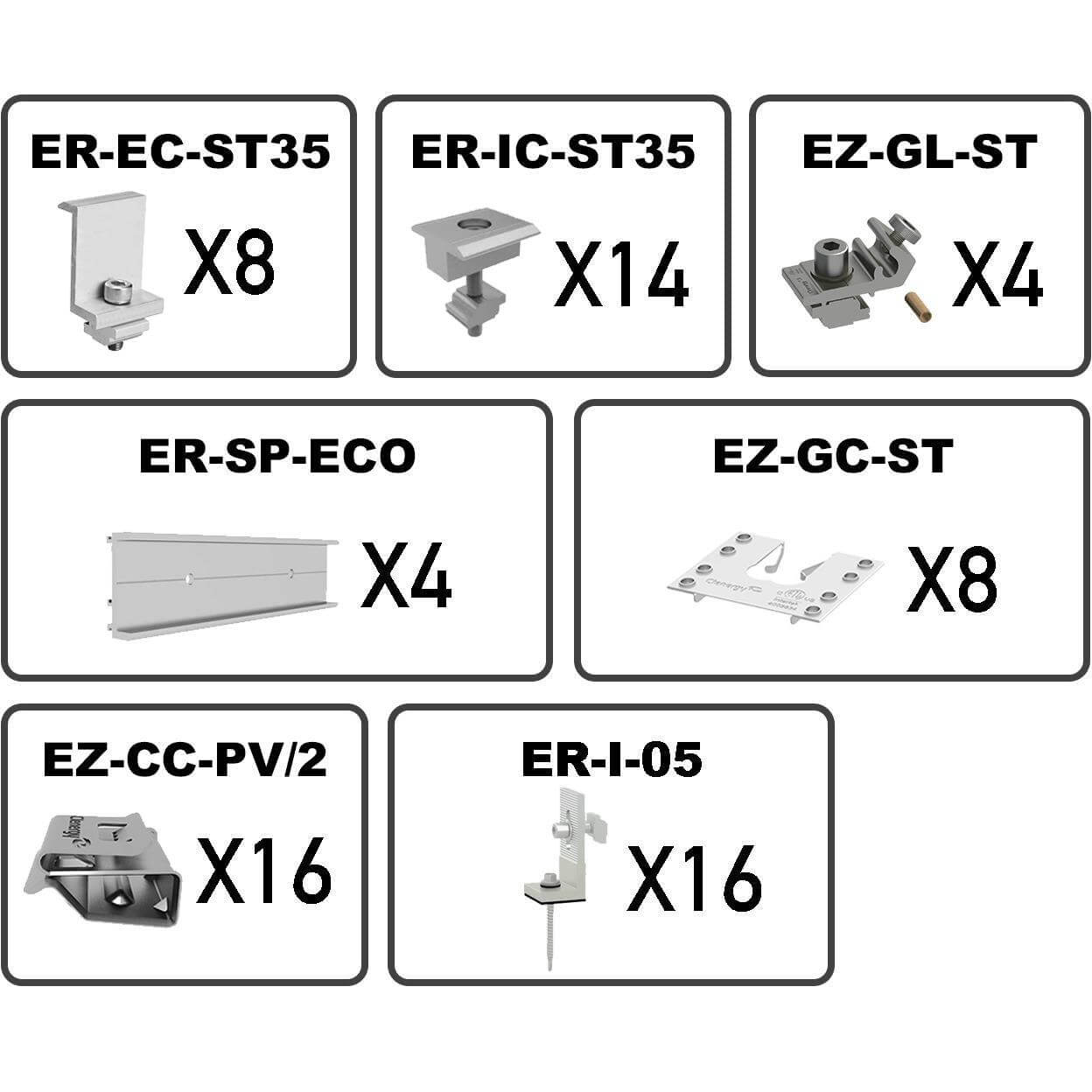

8 x ER-EC-ST35 (35mm end clamps)

– End Module Clamp 35mm (1-3/8″) , Standard

– Z-Module

– Hex Socket Head Bolt A2-70 M8 x 28 (5/16″x 1-1/10″)

– Lock Washer 8.4mm (21/64″)

14 x ER-IC-ST35 (35mm mid clamps)

– Inter Module Clamp, Standard

– 35mm (1-3/8″) with Hex Socket Head Bolt A2-70 M8x45mm (5/16″ x 1-49/64″)

– Z-Module

– Lock Washer 8.4mm (21/64″)

4 x EZ-GL-ST (Grounding lugs)

– Grounding Lug L25 (standard)

– Hexagon Socket Head Bolt M8 x 25mm (5/16″ x 63/64″)

– Z-Module L20

– Spring Washer M8.4 (21/64″)

– Flat Washer M8.4 (21/64″)

– Grounding Lug Bolt M6 x14mm (3/16″ x 35/64″)

4 x ER-SP-ECO (Splice)

– Splice for ECO Rail

– Splice with a standard length of 200mm (7/8″)

– Hexagon socket head cap screw M8*12mm

8 x EZ-GC-ST (Grounding clamps)

– Grounding Clamp (standard)

16 x EZ-CC-PV/2 (Panel clips for 2 cables)

Universal Cable Clip for PV Panels for holding 2 cables

16 x ER-I-05 (Tin interface bracket)

– Tin Roof Hook

– Rubber Pad

– Z-Module

– Washer 8mm (5/16″)

– Lock Washer 8mm (5/16″) A2

– Hex Socket Head Bolt M8 x 28mm (5/16″ x 1 1/8″)

– Buildex 14-11 x 70 Hex Head Zips screw

Kit does not include rails, isolator brackets or microinverter bolts.
