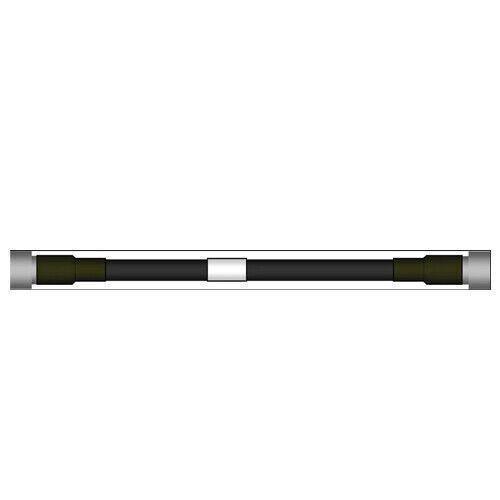

commscope F4R-HPHMHM Andrew 3 Meter HELIAX® 1/2" Remote control Antenna Cable

commscope F4R-HPHMHM Andrew 3 Meter HELIAX® 1/2" Remote control Antenna Cable

$79.87
$79.87
Sale Sold out
Shipping calculated at checkout.
Features and Benefits
WARNING: DO NOT MATE WITH 4.1-9.5 DIN
Specifications
Product Classification
Product Type SureFlex® HP, HELIAX® performance
Product Series RSJ4-50
General Specifications
Body Style, Connector A Straight
Body Style, Connector B Straight
Interface, Connector A 4.3-10 Male
Interface, Connector B 4.3-10 Male
Specification Sheet Revision Level A
Dimensions
Length 3 m | 9.843 ft
Nominal Size 1/2 in
Electrical Specifications
3rd Order IMD Static Test Method Two +43 dBm carriers
3rd Order IMD typical -119 dBm
DTF, Connector A -34 dB
DTF, Connector B -34 dB
Return Loss/VSWR
Frequency Band VSWR, typical Return Loss, typical (dB)
680–960 MHz 1.065 30.04
1700–2200 MHz 1.065 30.04
2200–2700 MHz 1.083 27.99
3400–3800 MHz 1.222 20.01
Jumper Assembly Sample Label
Click on image to enlarge.
Environmental Specifications
Immersion Test Method Meets IEC 60529:2001, IP68 in mated condition
