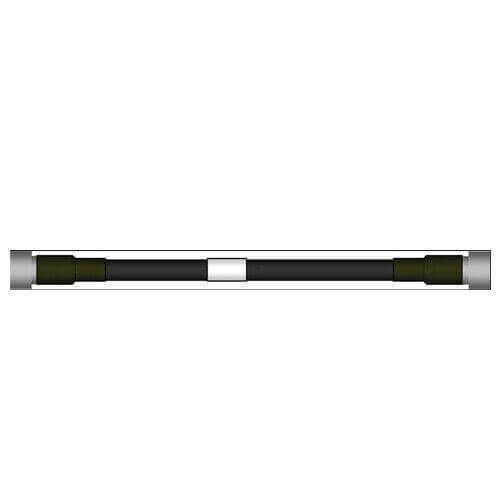

commscope F4R-HPNMNM Andrew 1.5 Meter HELIAX® 1/2"Remote control Antenna Cable
$79.87
commscope F4R-HPNMNM Andrew 1.5 Meter HELIAX® 1/2"Remote control Antenna Cable
Product Description
Specifications
Product Classification
Product Type SureFlex® HP, HELIAX® performance
Product Series RSJ4-50
General Specifications
Body Style, Connector A Straight
Body Style, Connector B Straight
Interface, Connector A N Male
Interface, Connector B N Male
Specification Sheet Revision Level A
Dimensions
Length 1.5 m | 4.921 ft
Nominal Size 1/2 in
Electrical Specifications
3rd Order IMD Static Test Method Two +43 dBm carriers
3rd Order IMD typical -112 dBm
DTF, Connector A -34 dB
DTF, Connector B -34 dB
Return Loss/VSWR
Frequency Band VSWR, typical Return Loss, typical (dB)
680–960 MHz 1.065 30.04
1700–2200 MHz 1.065 30.04
2200–2700 MHz 1.106 25.96
Jumper Assembly Sample Label
Click on image to enlarge.
Environmental Specifications
Immersion Test Method Meets IEC 60529:2001, IP68 in mated condition
Regulatory Compliance/Certifications
Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
CHINA-ROHS Above maximum concentration value
