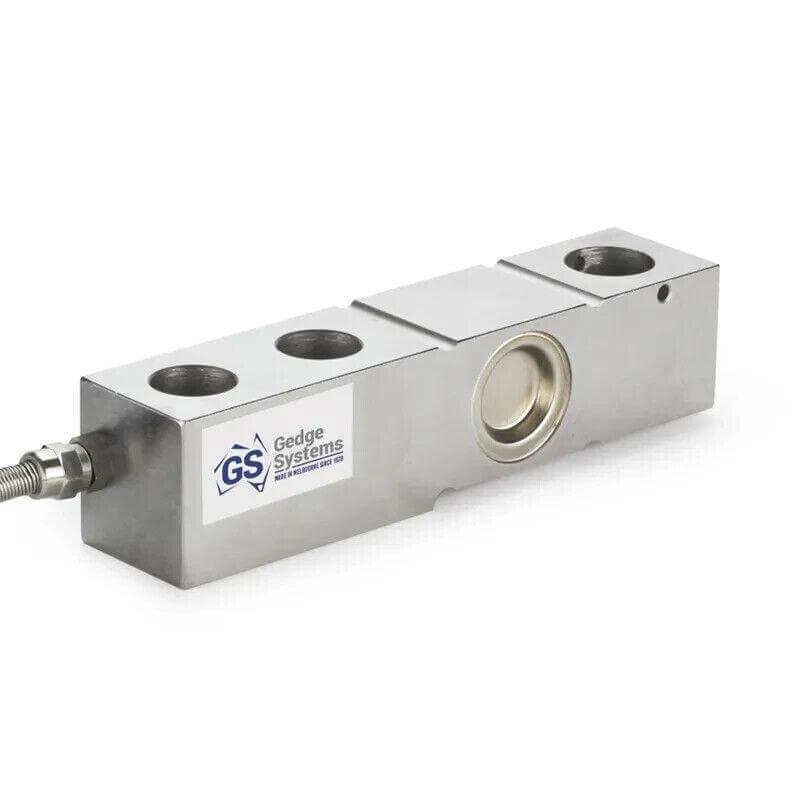

Gedge Systems GK2107S Load Cell 500kg Stainless Steel IP68 Shear Beam Made Au

or applications of 500kg/cell and above requiring IP68 Laser Welded Sealing, the Gedge Systems GK2107S in High Quality Stainless Steel is the PERFECT Choice. Just like the lower capacity GK2101S Bending Beam, the GK2107S Shear Beam in 500kg to 5,000kg capacities is not afraid of WATER – choose this cell for ALL Batching and Weighing applications requiring Stainless Steel and IP68 Sealing. Team this cell with our ALL STAINLESS STEEL fully constrained MOUNT model GKMA3T2107 for a complete VERY HIGH QUALITY load cell and mount solution to 3,000kg.

PRODUCT PROPERTIES:

• Waterproof Sealed IP68 Rating 500kg~5000kg.
• Superior Laser Welded seal construction 500kg~5000kg.
• Capacities below 500kg are IP67 sealed.
• Made from Stainless Steel.
• Matched outputs make corner adjustments unnecessary in most applications.
• Load Cells 100% tested to guarantee load and met/exceed thermal specifications.
• Integral mounting step reduces need for spacer plate & improves mounting.
• High Accuracy 0.02% Combined Error ( 2 in 10,000).
• Wide range of “purpose-designed” Stainless Steel feet, fittings and mounts.
• Wide Range of Popular Capacities 25kg to 5,000kg.
• M12/M16 & 18 Mounting threads allow the use of Rugged Feet and Fittings.
• 5mm and 21mm Large Mounting Holes allow the use of Strong hold down bolts.

Applications:

• Industrial Floor Scales.
• Batch weighing.
• Hopper filling and level control.
• Food, Chemical & Pharmaceutical Industries.
• Bagging and Filling Machines.
• Inventory Control – by weight.
• Shipping Scales.
• Overhead Cattle Scales.
• Agricultural Applications.
