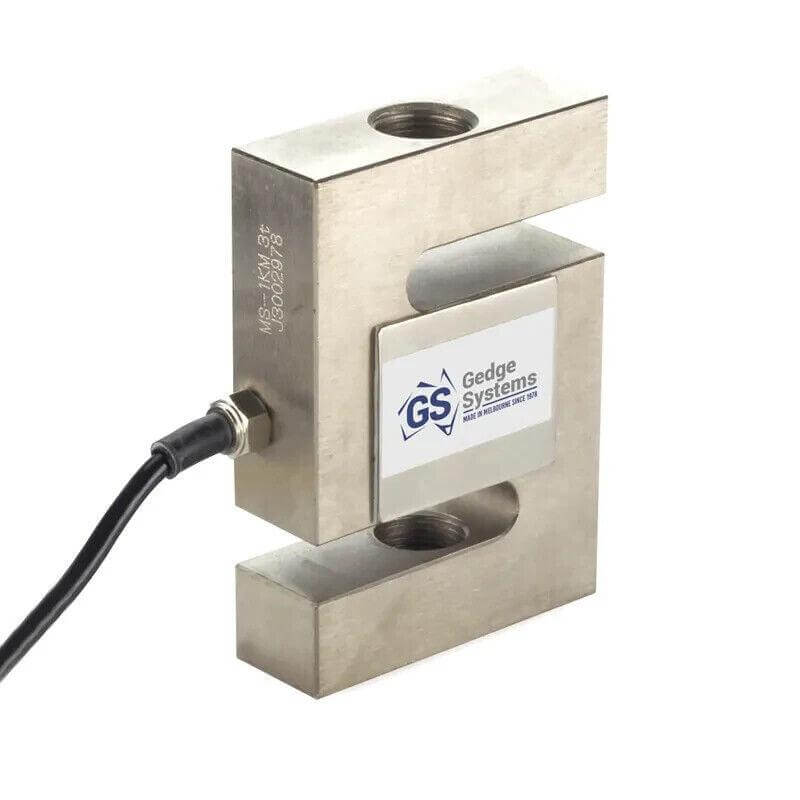

Gedge Systems GK2126 S Type Load Cell Capacity 200Kg Weighing Sensor Made Au

The GK2126 S type load cell is manufactured and stocked in BOTH METRIC THREAD and IMPERIAL UNF THREAD SIZES. If you need a REPLACEMENT Load Cell or Cells for your application, we have the cell for you in the GK2126 Range. It is made in international sizes so replacement of existing cells is made simple. The high accuracy of the GK2126 range – 0.02% Full Scale Maximum Combined Error makes it appropriate to use in Weight and Force Calibration Rigs, including all Hanging Bin and Hopper Batching applications in all industries.

The range includes models with COARSE PITCH Metric threads to match inexpensive and easy-to-source ALL THREAD High-Tensile Rod (also called Samson Rod or Booker Rod).

PRODUCT PROPERTIES:

• Wide range of Popular Capacities from a Low 25kg to a High 20,000kg.
• High Grade Tool Steel Construction Electroless Nickel Plated.
• High Level 3mV/V Outputs.
• High Accuracy 0.02% Combined Error.
• Load Cells 100% tested to guarantee load and met/exceed thermal specifications.
• International Standard Threads in Metric and Imperial/US sizes including Coarse Pitch Metric.

Applications:

• Tension Calibration Rigs.
• Hanging Tank and Bin Weighing.
• General Force Measurement.
• Hopper filling and level control.
• Food and Chemical Industry.
• All Tension Weighing.
• All well-aligned Compression Applications.
