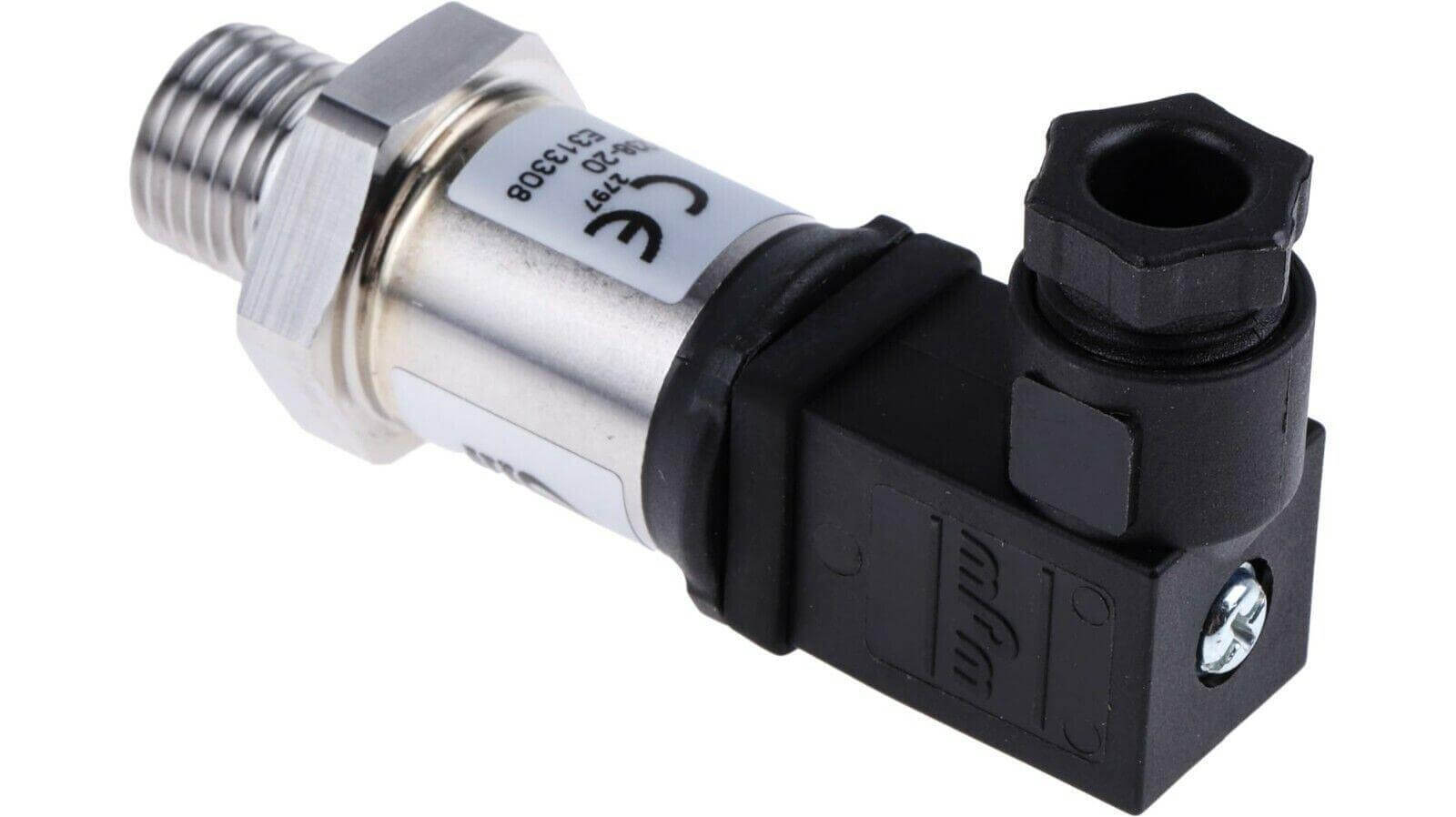

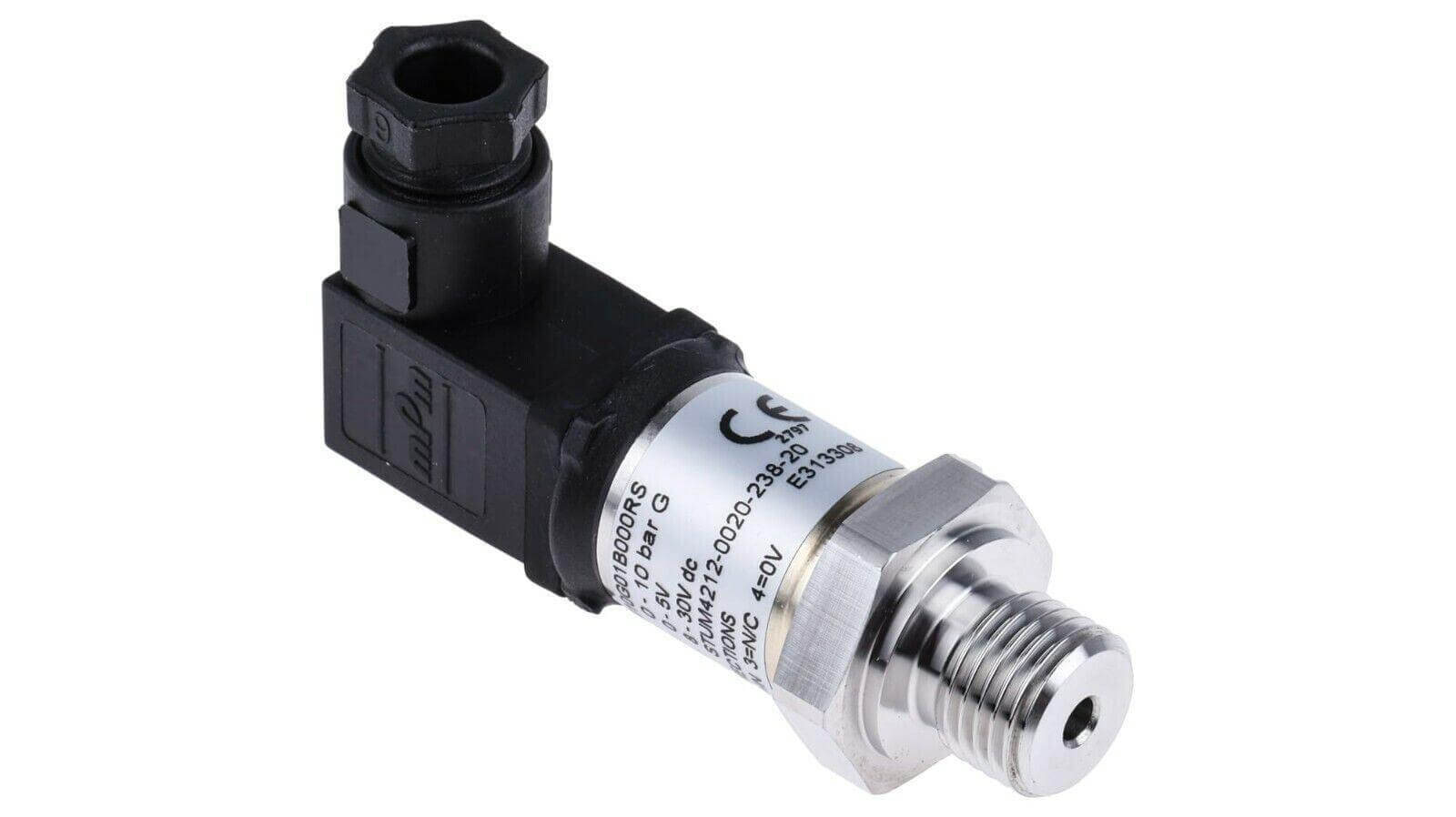

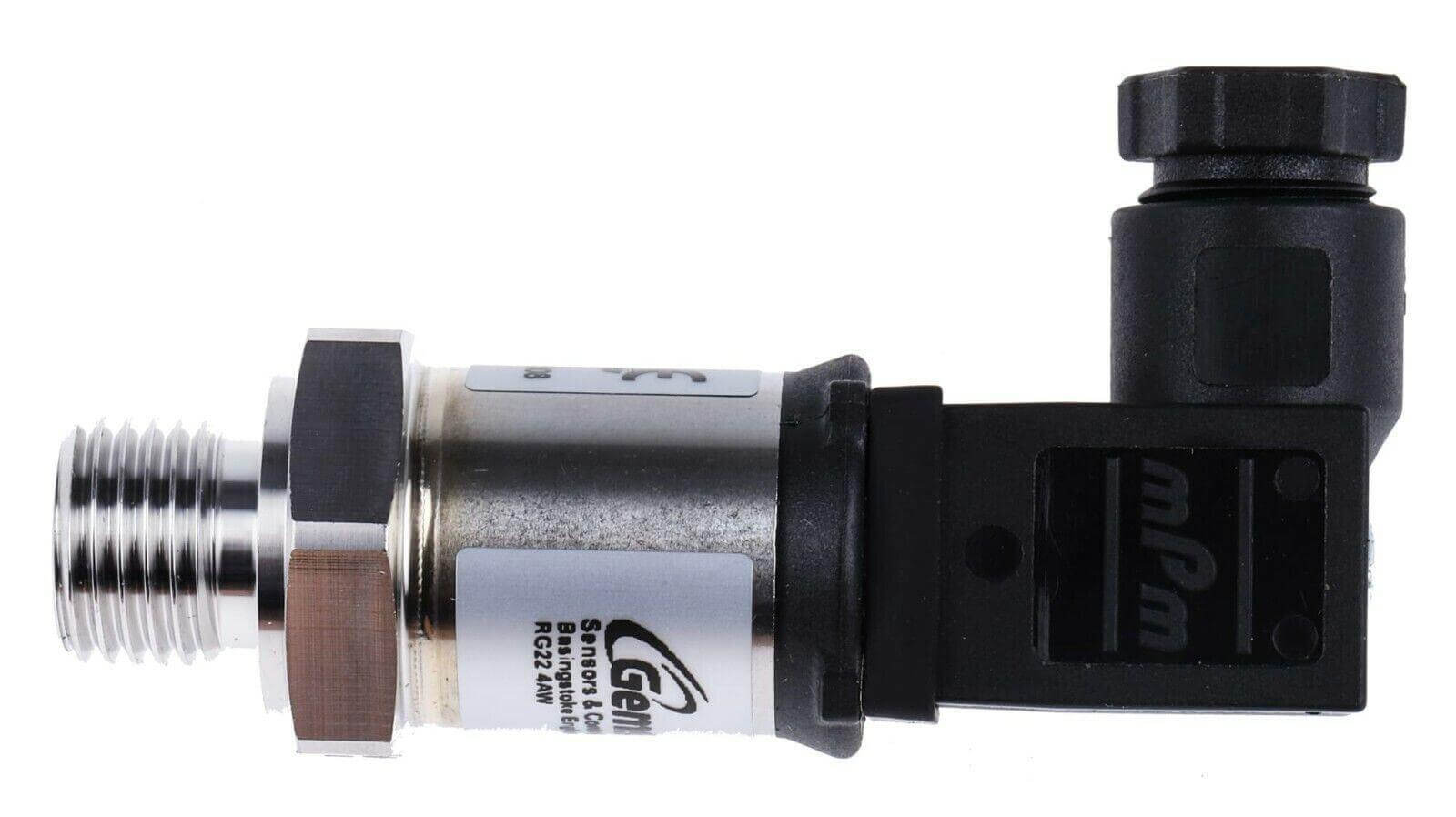

Gems Sensors PRESSURE SENSOR 10bar 8-30VDC G1/4 Connection, Analogue, Relative
$299.87
Gems Sensors PRESSURE SENSOR 10bar 8-30VDC G1/4 Connection, Analogue, Relative
Product Description
Product Details
Pressure Transmitters - 3100 Series
Gems Sensors 3100 series pressure transmitters offer consistent high levels of performance, reliability and stability in a wide range of compact package sizes. They feature all stainless steel wetted parts, a broad selection of electrical and pressure connections, and wide choice of electrical outputs to suit most applications. At the heart of the 3100 series is a sputter element that also provides exceptional temperature specifications.
Features and Benefits
High proof pressures
Broad choice of outputs
Operating temperature: -40°C to +120°C
Ideal for installations where space is at a premium
Stainless steel wetted parts
RoHS compliant
IP67 Rated
0.25% FS accuracy
Specifications
| Attribute | Value |
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 10bar |
| Accuracy | ±0.25 % |
| Output Type | Voltage |
| Media Measured | Fluid, Gas |
| Process Connection | G1/4 |
| Analogue Output | 0 → 5 V |
| Electrical Connection | DIN 43650 Type A |
| Response Time | 1 ms |
| Maximum Current | 4.5 mA |
| Supply Voltage | 7 → 30 V dc |
| Housing Material | Stainless Steel |
| Minimum Operating Temperature | -40°C |
| IP Rating | IP65 |
| Maximum Operating Temperature | +125°C |
