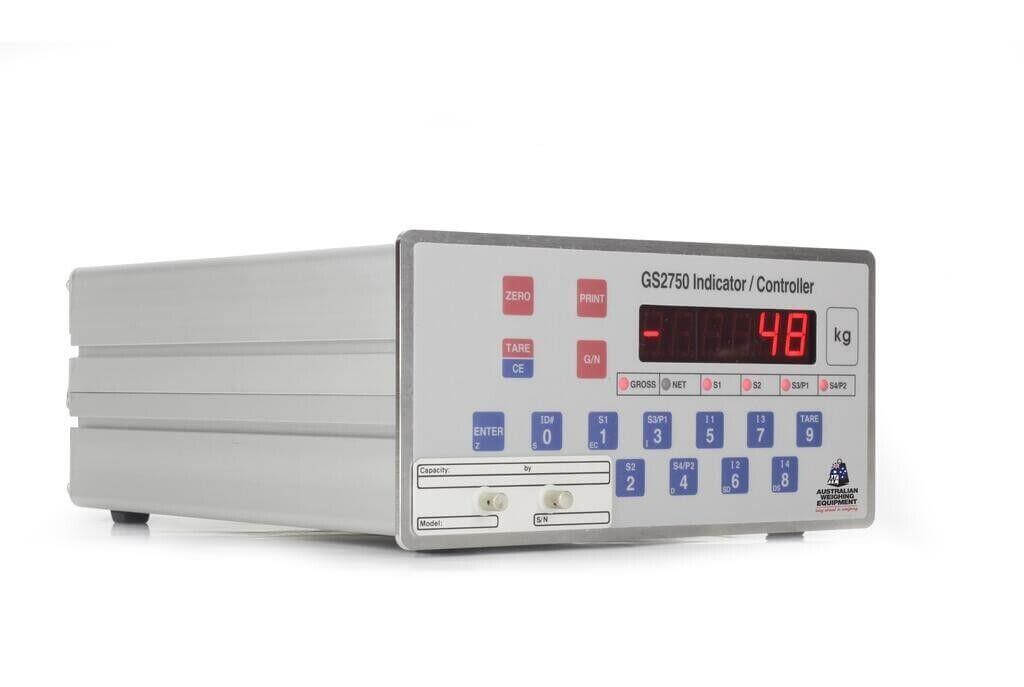

GS2750 Batch indicator Digital Weight Indicator &4 Setpoint Controller

7% discount if you purchase directly from us  on internet Australian Empire shop Discount code (empire7)

Here is the easiest to use FOUR setpoint weight Indicator/Controller in its class. The GS2750 is the ideal batch controller for any application requiring set point alarms or weight feeder controls- it’s versatile, intelligent, user configurable and low cost. It can be used in any virtual batching situation from simple four material setpoints to computer controlled batching with downloaded setpoints. The four solid state relay output setpoints can be used as simple level control or alarms, or for batch controlling of four single speed feeders or two dual speed feeders. A wide range of options which include High Stability Analog Output Cards and Serial I/O Cards expand the GS2750’s capabilities. The GS2750 will operate accurately and reliably in Intrinsic Safety applications through Galvanic Barriers (call for circuit examples).

PRODUCT PROPERTIES:

• Display resolution to 1 in 10,000
• Download up to 72 Setpoints via Optional Serial I/O Card
• Bright 14mm 6 Digit Red LED display to 199,990
• Full Digital Setup and Keyboard Calibration
• Can be Calibrated in ANY Units kg, t, lb, g, N, kN etc
• Four Programmable Setpoints
• 4 Optically Isolated Open Collector Outputs
• 5kBaud RS-422 Output for GS Remote Displays and Controllers
• Optically Isolated Remote Keyboard Interface
• Excitation Sense designed for Accurate operation through Intrinsic Safety Barriers
• 10VDC Excitation for up to 8 x 350Ohm Load Cells
• High Accuracy and High Thermal Stability
• All Units 100% Tested for Accuracy & Thermal Stability

Applications:

• Four Ingredient Batching System
• Silo Weighing
• Hopper Weighing
• Conveyor Weighing
• PLC/SCADA Weighing Interface
• Force Measurement with Settable Force Limits

Option Cards:

• Option 02 Serial Output RS-232C
• Option 03 Parallel BCD Output
• Option 05 Serial Output 20mA Active Current Loop
• Option 06 Analog Output 12 Bit Accuracy (1 in 4,096) 4-20mA & 0-10VDC
• Option 06HP Analog Output 14 Bit Accuracy (1 in 16,384) 4-20mA & 0-10VDC
• Option 07 Serial Input/Output Optically Isolated RS-232C & Passive 20mA Current Loop
• Option 08 Serial Input/Output Optically Isolated RS-422A & MultiPoint RS-485
• Option 09 Serial Output RS-422
• Option 202 Serial Output Optically Isolated RS-232C
• Option 207 Serial Output Optically Isolated RS-232C & 20mA Passive Current Loop
• Option BR2 Calendar/Clock with Battery Backed Memory for Tare & Zero Tracked Zero
• Option F1 Increase the Update Rate from 10/sec to 20/sec
