Idem 526002 Safety Switches RFID Safety Gate Box 4 Station UGB4-KLTM-RFID-RR (UK

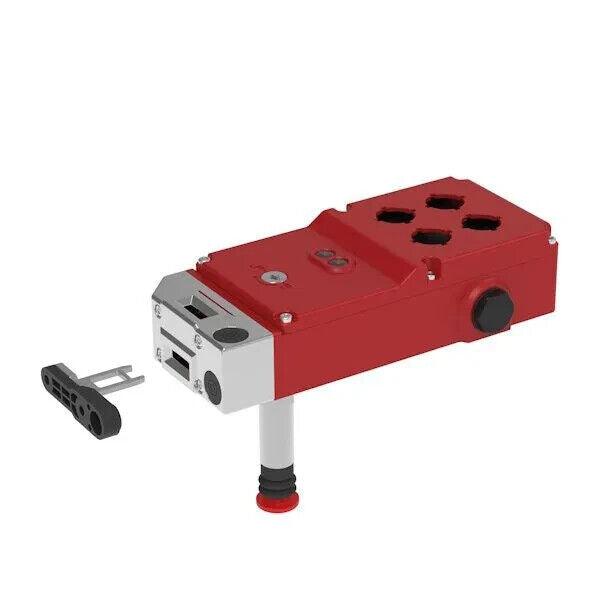

UGB-KLTM-RFID-RR provides high level RFID coded interlocking and machine control functions in one heavy duty housing. They can be easily fitted to access doors to provide guard locking, rear escape options and sliding or rotary handles to reduce the risk of operators being trapped inside a guarded area. The UGB-KLTM-RFID-RR housing will incorporate 22mm push buttons, lamps or switches which can be added to provide machine request or control functions in one form factor.

• Body Material: Red painted Die-Cast with 316 Stainless Steel Head
• Ingress Protection: IP65
• RFID Coding: Unique (can be retaught if lost or damaged)
• Control Devices: 4

• 526002

  UGB4-KLTM-RFID-RR Manual Override

  2NC Lock / 2NC Guard

  1 PNP Lock / 1 PNP Guard

  Yes

  Yes

  M20
