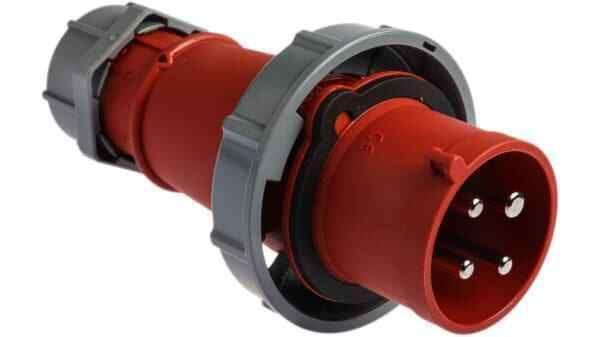

Mennekes AM-TOP INDUSTRIAL POWER PLUG 32A 400-440V 4P IP67 Cable Mount RED 2175B
Mennekes AM-TOP INDUSTRIAL POWER PLUG 32A 400-440V 4P IP67 Cable Mount RED 2175B
Couldn't load pickup availability
PRODUCT INFORMATION
Mennekes AM-TOP INDUSTRIAL POWER PLUG 32A 400-440V 4P IP67 Cable Mount RED 2175B
From Mennekes, the AM-TOP series of IP67 CEE industrial cable mount plugs are robust, reliable and easy to connect. Featuring open terminal screws all facing in the same direction the AM-TOP series of plugs are terminated quickly in the field. A rugged cable gland at the rear of the plug when tightened grips the cable and seals the gasket at the same time. Integral strain relief prevents cable kinking. Constructed from a heavy-duty Amaplast casing including nickel plated contacts with high heat resistant contact carriers supporting excellent corrosion resistance. Ergonomically designed the AM- TOP series of industrial BS4343 plugs perform exceptionally well in the most demanding environments.
Overview
Features and Benefits
o Rugged construction for added durability.
o Screw terminal connection. Open connection terminals all facing in the same direction enabling rapid wiring.
o Single part body.
o Cable gland and sealing. Tightening the cable gland activates the internal cable grip and automatically seals the gasket.
o Integrated cable strain relief, preventing the cable from kinking
o Highly heat resistant contact carrier with nickel plated contacts, supporting corrosion resistance and abrasion.
Applications
o Heavy Industry: Steel mills, foundries, where connections are exposed to dust and metallic particles.
o Food industry: Locations where washing down of equipment is imperative.
o Entertainment and sports: Connections on lighting and filming equipment exposed to rain, mud, and snow.
o Agriculture: Outdoor installation pumping on tractors and slurry trucks, pumps for animal feed.
o Ship yards and ports: Docks, piers and boat moorings. Connections exposed to rough seas and flooding.
o Construction sites: Outdoor sites, connectors left in damp conditions transformers and generators.
Specifications
o Contents: 1 INDUSTRIAL POWER PLUG
o Model Number: 2175B
o Current Rating: 32.0A
o Plug/Socket: Plug
o Pole Format: 4P
o Voltage Rating: 415 V
o Mounting Type: Cable Mount
o IP Rating: IP67
o Colour: Red
o Gender: Male
o Body Orientation: Straight
o Termination Method: Screw Terminal
o Series: AM-TOP
o Cable CSA: 2.5 → 6mm²
o Maximum Operating Temperature: +55°C
o Minimum Operating Temperature: -25°C
o Low Voltage: No
o Brand Name: Mennekes
