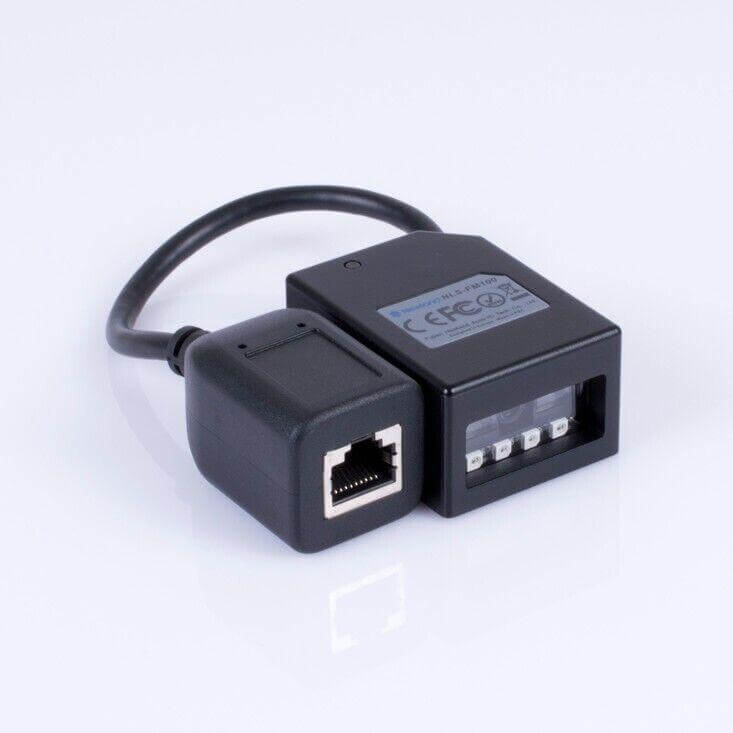

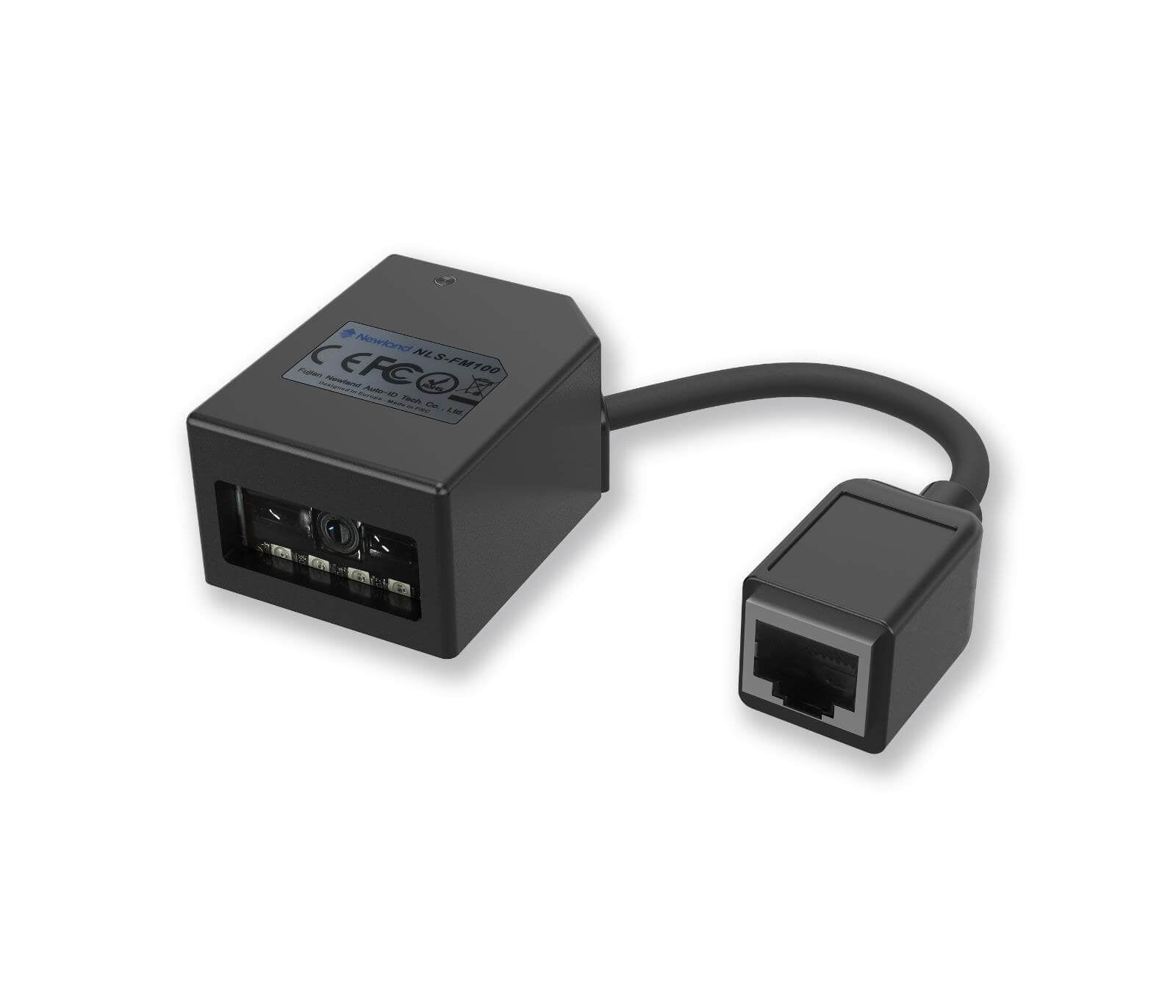

NLS-FM100 Fixed Mounted Barcode Scanner Reader 6Month Warranty A_Grade Free Post

NLS-FM100 Fixed Mounted Barcode Scanner Reader 6Month Warranty A_Grade Free Post

$69.87
$69.87
Sale Sold out
Shipping calculated at checkout.

Designed for OEM applications, this high performance fixed CCD scan engine can easily be integrated into various solutions such as kiosks, ticketing machines, (Reverse) Vending Machines and many more

Technical specifications

Data Capture
1D All major 1D symbologies, including Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E,Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93,UCC/EAN-128, GS1Databar.
Image Sensor CCD 2500
Illumination Red LED (622 nm - 628 nm)
Scan Modes Interval Mode, Sensor Mode, Continuous Mode, Delayed Sensor Mode, Command Triggered Mode
Scan Rate 300 scans per second
Performance
Minimal Print Contrast 30%
Scan Angle Roll ±30°
Scan Angle Pitch ±65°
Scan Angle Skew ±60°
Field of View Horizontal 40°
Physical
Dimensions (mm) 49.0 *37.0 * 26.0 mm
Weight 70g
Material ABS
Interfaces RS-232, USB
Notifications Beep, LED indicator
Input Voltage 5VDC ± 5%
Current @ 5VDC Operating 163mA
Current @ 5VDC Standby 65mA
Power Supply Input DC5V, 1.5A
Power Supply Output AC100~240V, 50~60Hz
Environmental
Ambient Light 0 ~ 100,000 LUX
Operating Temperature -5°C to 45°C
Storage Temperature -40°C to 60°C
Humidity 5%~95% (non-condensing)
IP Rating IP54
Certifications
Hardware FCC Part15 Class B, CE EMC Class B,KC
