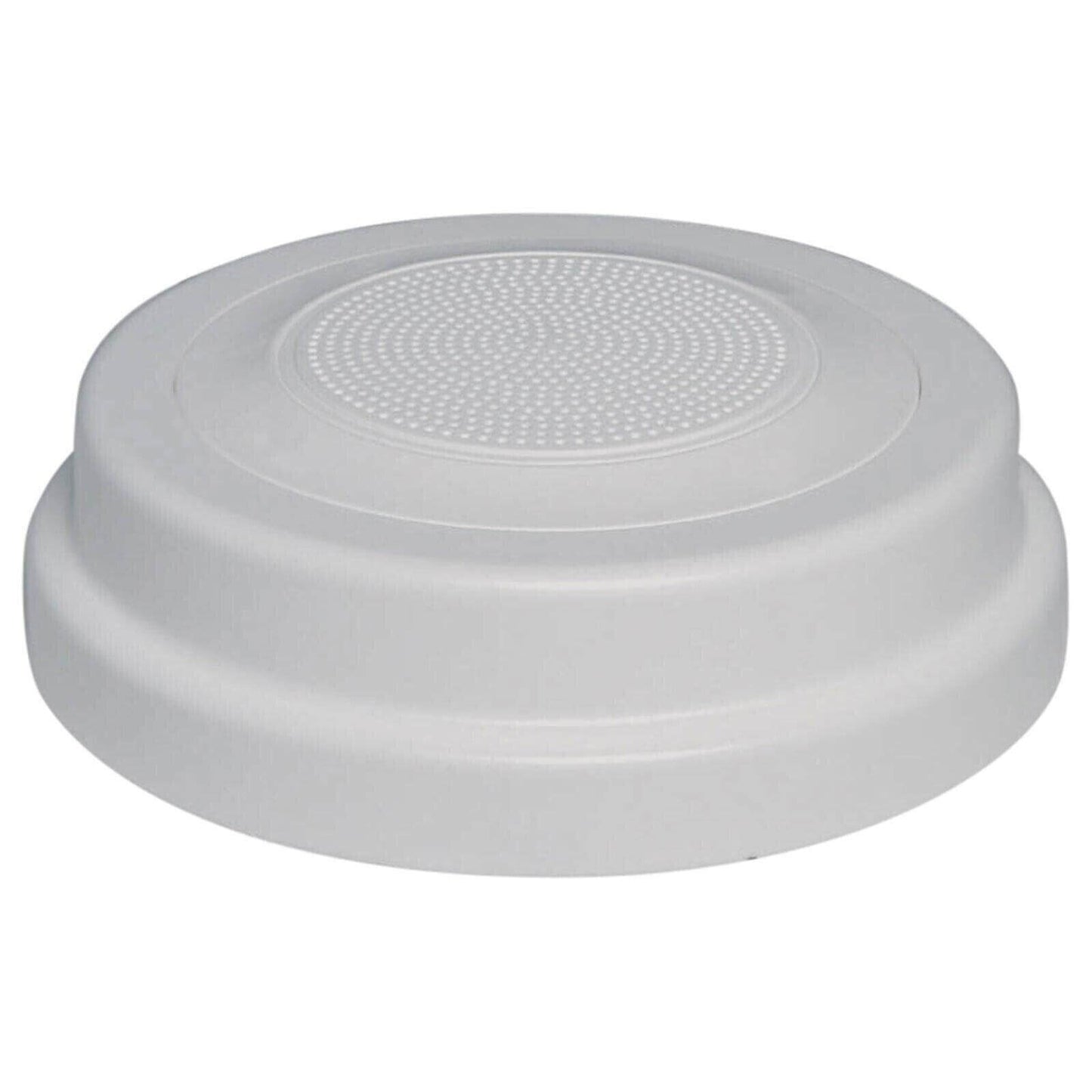

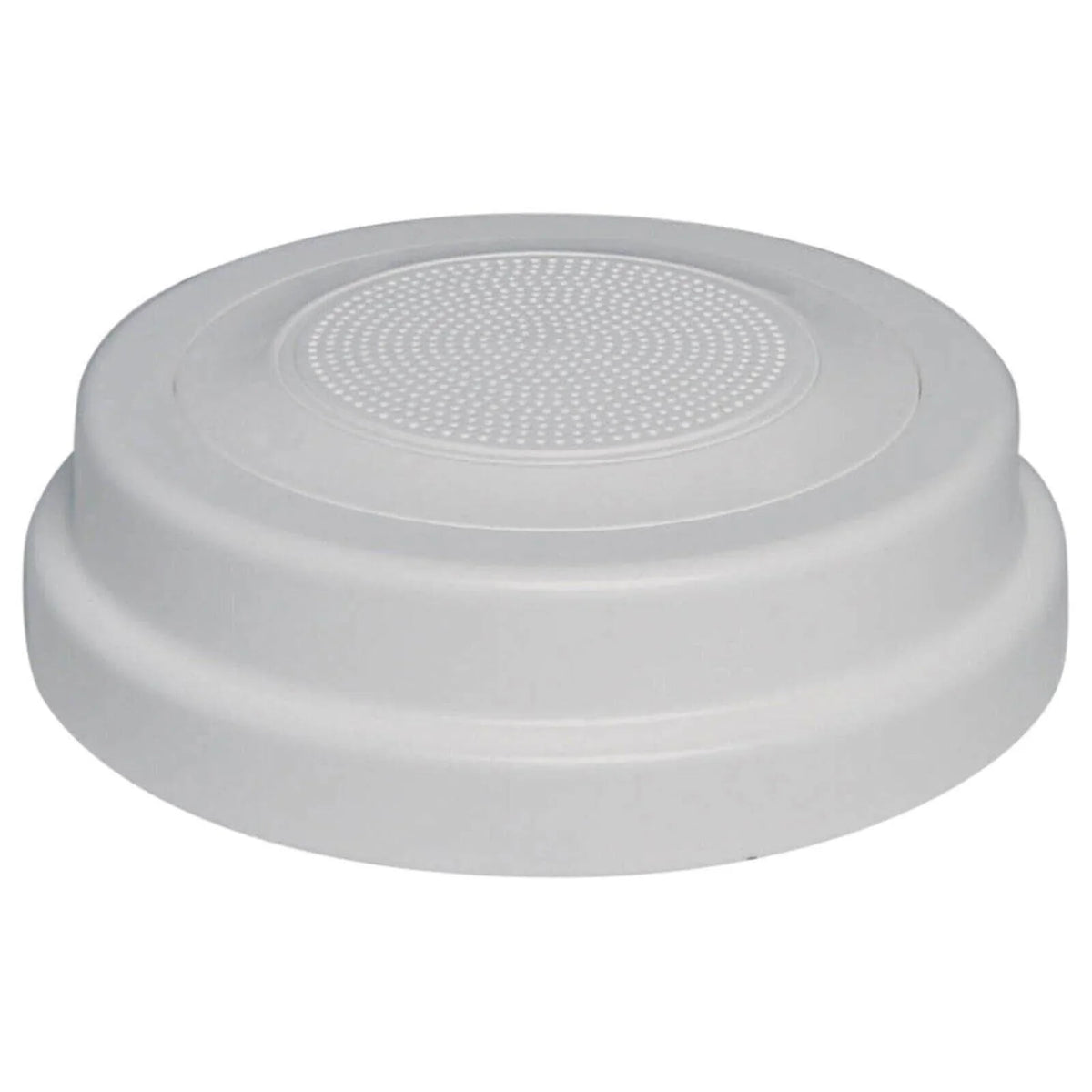

One-Shot 200mm 5W 100V White Surface Mount EWIS Speaker
One-Shot 200mm 5W 100V White Surface Mount EWIS Speaker
Couldn't load pickup availability
One-Shot 200mm 5W 100V White Surface Mount EWIS Speaker
Super Fast Installation. Save Time & Money!
Saving valuable installation time the innovative One-Shot® range is moulded from industrial grade, high impact polystyrene and designed to mount directly to the underside of concrete slabs or inaccessible ceilings.
The housing is surface mounted with concealed internal fixings. Speaker cable entry can be either from the rear, or via surface mounted conduit (four 19mm conduit knockouts are provided).
An excellent choice for use in plant rooms, warehouses, shopping centres, malls etc.
The speaker is fitted with a 100V line multi-taped transformer & 4 way wire protected terminal strip with 22µF bipolar capacitor for line monitoring applications in EWIS systems.
These "One-Shot"® versions simply snap-fit in seconds to the surface mounting ring, reducing installation time considerably.
Specifications
Power taps: 0.33, 0.66, 1.25, 2.5, 5W
Frequency response: 75Hz - 15kHz
SPL 1W@1m: 93dB
Connection: 4 way wire protect terminal & 22uF bipolar cap
Dimensions: 310Ø x 85H mm.
Note: All SPL figures are measured at 1KHz +/- 2dB.
