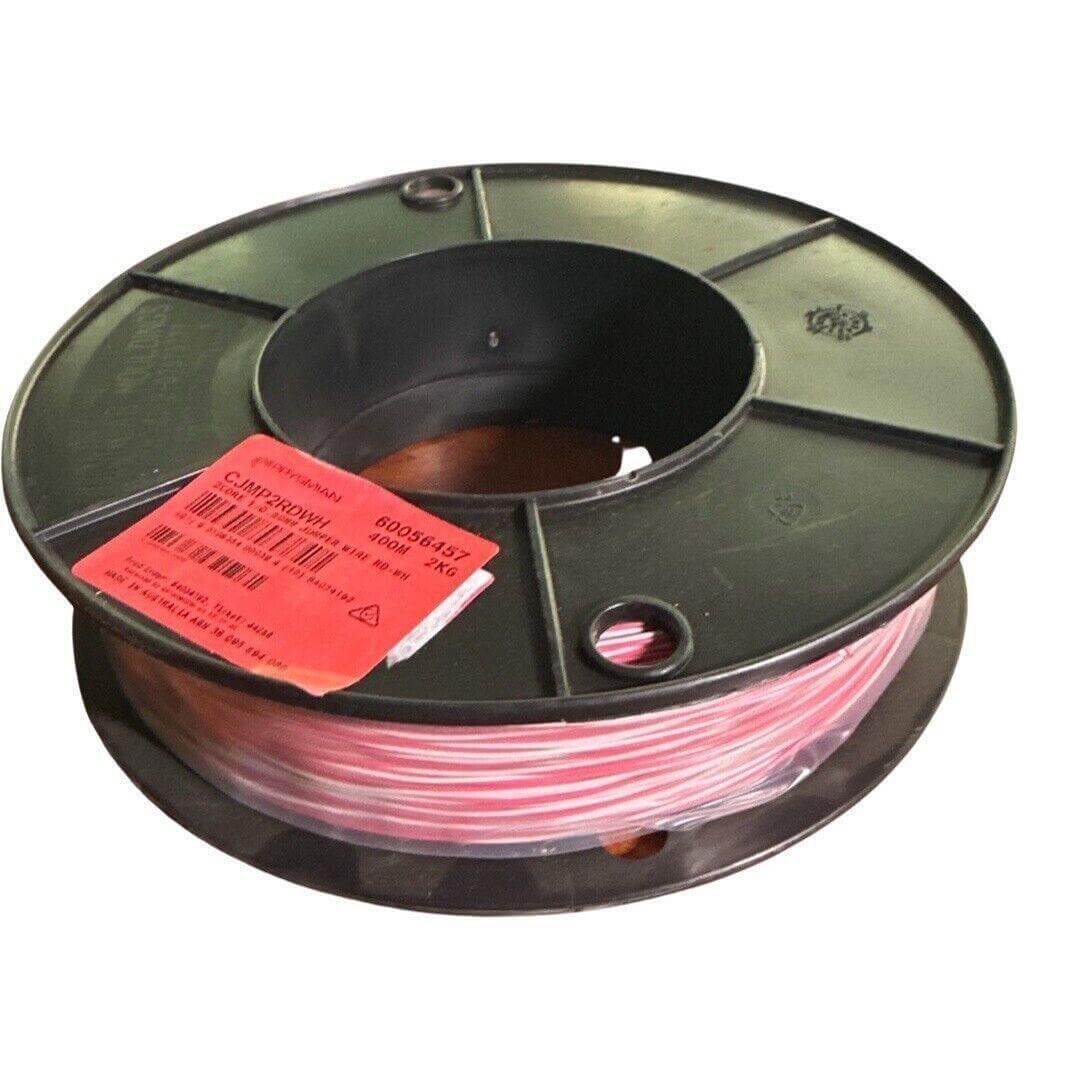

PRYSMIAN 1 ROLL 400m (2Kg) JUMPER WIRE RD-WH 2 CORE 0.50mm Red or Green

Number of Wires 2 x 0.40 mm 2 x 0.50 mm Cable nominal diameter mm 1.5 1.8 Cable nominal weight kg/km 3.0 4.5 Max. installation tension N 24 38 Min. bending diameter mm 15 20 Temperature range °C Installation -0 -> +50 Operation -0 -> +60 Electrical characteristics @ 20°C Maximum conductor resistance Ω/km 147.6 94.5 Minimum insulation resistance MΩ.km 1000 Maximum mutual capacitance nF/km 80 Table 1. Colour code / Pair identification Cable size Insulation colour Wire a Wire b 2 x 0.40 mm White Blue 2 x 0.50 mm White Blue 2 x 0.50 mm White Green 2 x 0.50 mm White Red 2 x 0.50 mm White Violet
