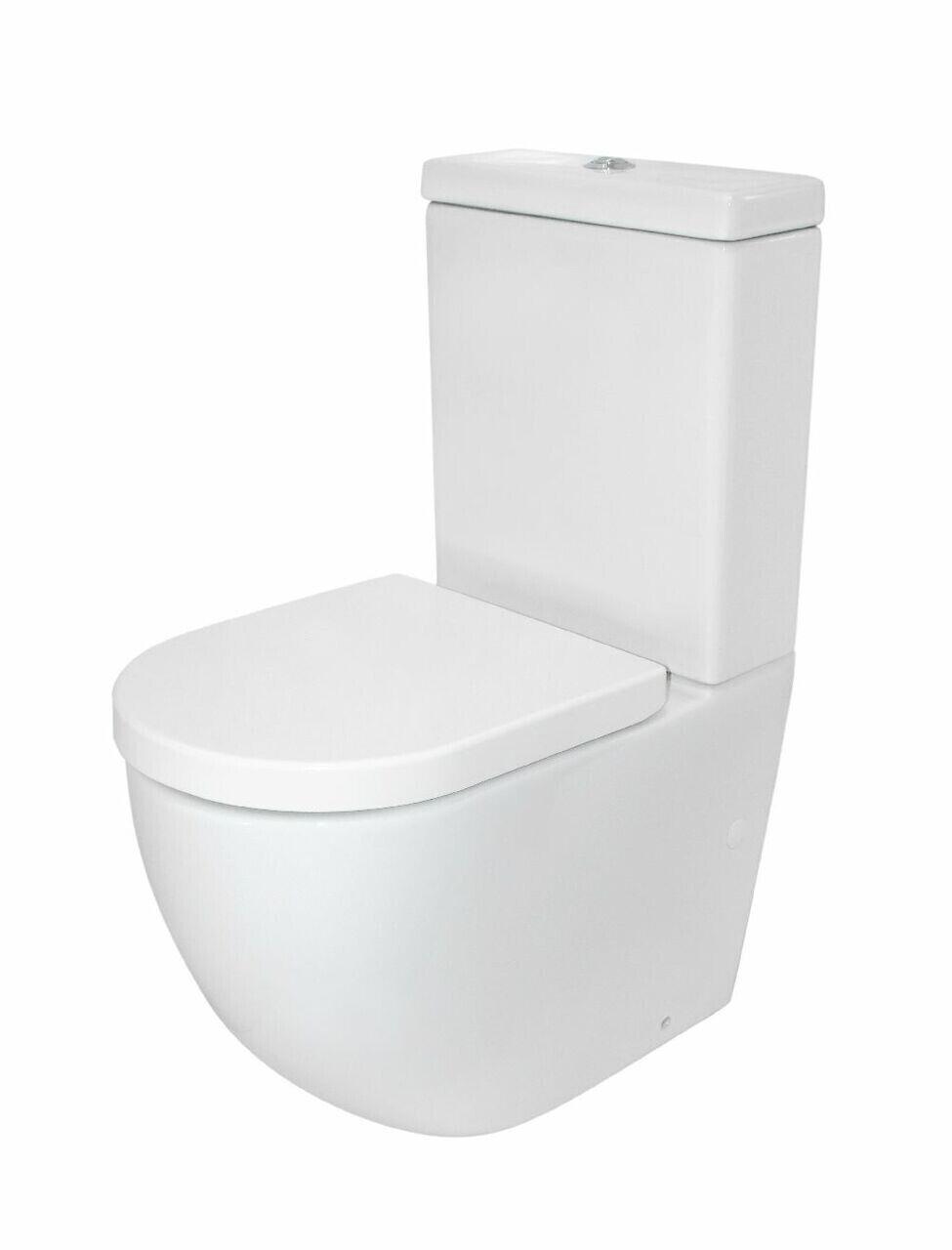

Raymore Winton Back To Wall Toilet Suite Standard Seat

FEATURES AND BENEFITS

• Vitreous China Cistern
• Easy clean rim
• White Soft Close, Quick release standard seat with metal hinges
• R&T Side entry inlet valve
• R&T 4.5/3L Dual flush outlet valve
• Bottom Inlet RHS/LHS or Back Inlet
• P-trap set out 185mm
• S-trap set out 90mm-165mm as standard
• S-trap set out 150mm-225mm as optional

• Colour

  White

• Width

  365mm

• Height

  830mm

• Depth

  615mm

• Warranty

  20 year - Vitreous china, nylon braided hoses & chrome plated finish 15 year - plastic cistern, in-wall cistern frame 5 year - inlet & outlet valves, toilet seat, link piece, flush pipe, flush button, PVD & elctroplate finishes, fittings 1 year - sea

• Maintenance and Care Instructions

  Surfaces should be regularly cleaned with a soft, dampened cloth or sponge with warm, soapy water or mild detergent only. Do not use abrasive brushes, scourers, cleaners or harsh chlorides or chemicals as these can damage the finish.

• Inclusions

  1 x Cistern 1 x Pan with seat 1 x Variance Bend Installation Instructions

• WELS Ratings

  4

• Trap

  P/S

• Pan Type

  Rimless

• Flush Type

  Full / Half

• Set Out

  P-trap set out 185mm S-trap set out 90mm-165mm as standard S-trap set out 150mm-225mm as optional

• Seat

  Soft Close, Quick Release with Metal Hinges

• Outlet Valve

  R&T 4.5/3L Dual flush outlet valve

• Assisted Living Suitability

  No

• Manufacturer Part Number (MPN)

  203150
