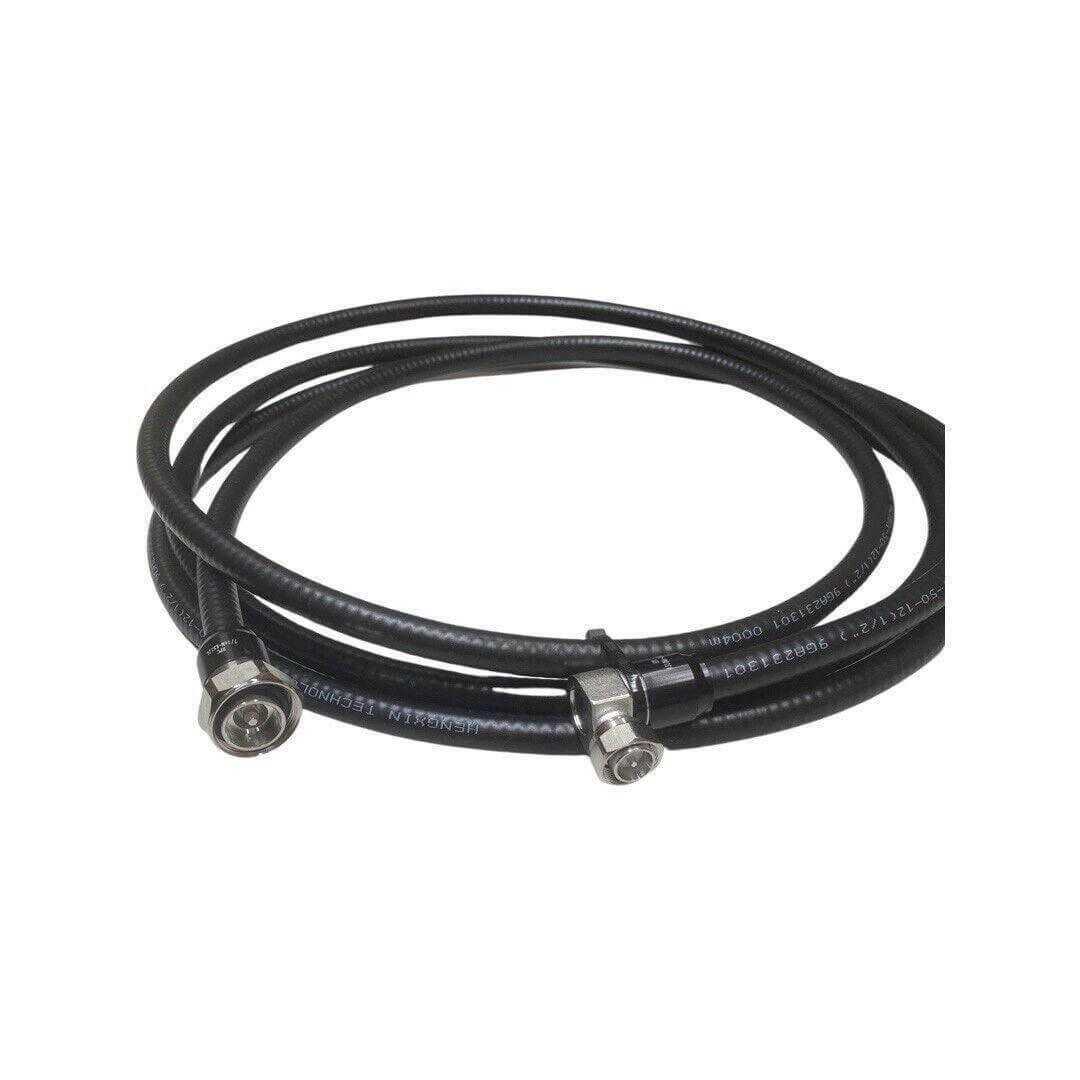

RF Coaxial Jumper Cable LCF 1/2 ,5M 4310 Male Angel- 7/16 Male Hengxin

Professional High Frequency RF Signal Cable

Reliable RF Connectivity for Demanding Communication Systems

The RF Coaxial Jumper Cable is engineered to deliver stable signal transmission, low attenuation, and superior electrical performance for professional RF applications. Designed with premium low-loss technology and industrial-grade construction, this cable supports high-frequency communication systems requiring dependable and uninterrupted signal integrity.

Built for telecommunications, broadcasting, wireless infrastructure, antenna systems, and RF testing applications, the RF Coaxial Jumper Cable operates across frequencies from DC to 7.5GHz while maintaining excellent VSWR and ultra-low PIM performance. Its rugged waterproof design ensures long-term durability in harsh indoor and outdoor environments.

Key Benefits of This Product

1. Exceptional Signal Performance

Low insertion loss and optimized impedance help maintain strong RF signal transmission with minimal attenuation.

2. Wide Frequency Support up to 7.5GHz

Suitable for advanced telecommunications, wireless networking, and high-frequency RF systems.

3. Durable IP68 Waterproof Design

The RF Coaxial Jumper Cable is protected against water, dust, and harsh environmental conditions for reliable outdoor performance.

4. High Mechanical Strength

Engineered with tensile resistance up to 500N for dependable operation in demanding industrial installations.

5. Professional-Grade RF Reliability

Low VSWR and ultra-low PIM values improve signal efficiency and reduce interference in sensitive RF environments.

Features & Specifications

Electrical Specifications

• Impedance: 50 Ohm
• Frequency Range: DC to 7.5GHz
• Insulation Resistance: ≥5000MΩ
• Dielectric Withstanding Voltage: 2500V rms (DC)
• Operating Voltage: 1500Vrms
• Insertion Loss: ≤0.14*L+0.2dB
• VSWR @0.8–1.0GHz: ≤1.08
• VSWR @1.7–3.0GHz: ≤1.10
• PIM3 @1800MHz: ≤-155dBc

Environmental & Mechanical Performance

The RF Coaxial Jumper Cable is built for demanding applications with:

• Cable Tensile Resistance: ≥500N
• Torque Proof: 30N·m
• Waterproof Rating: IP68
• Operating Temperature: -45°C to +85°C
• Storage Temperature: -45°C to +65°C
• RoHS Compliance

Low Loss RF Design

Advanced cable construction minimizes signal reflection and insertion loss for enhanced RF transmission quality.

Industrial-Grade Durability

Manufactured for long-lasting use in harsh weather, outdoor installations, and industrial communication environments.

Stable High-Frequency Connectivity

The RF Coaxial Jumper Cable delivers reliable RF performance for systems requiring consistent signal integrity and operational stability.

Why Customers Choose This RF Cable

RF engineers, telecommunications installers, and network technicians choose this cable because it combines high-frequency capability, waterproof protection, and low-loss performance in one dependable solution. Its rugged construction and professional-grade electrical characteristics make it ideal for critical communication systems and demanding RF infrastructure.

The RF Coaxial Jumper Cable is trusted for applications where durability, signal quality, and long-term reliability are essential.

Recommended Applications

Ideal For:

• Telecommunications systems
• RF communication infrastructure
• Wireless networking equipment
• Antenna and base station installations
• RF testing and measurement
• Broadcast transmission systems

The RF Coaxial Jumper Cable is specifically designed for professionals requiring dependable RF signal transmission in indoor, outdoor, and industrial environments.

Care & Maintenance

• Avoid excessive bending during installation
• Store in a dry and clean environment
• Inspect connectors periodically for wear
• Clean using non-abrasive materials only

Proper maintenance helps maximize the operational lifespan and performance of the product.
