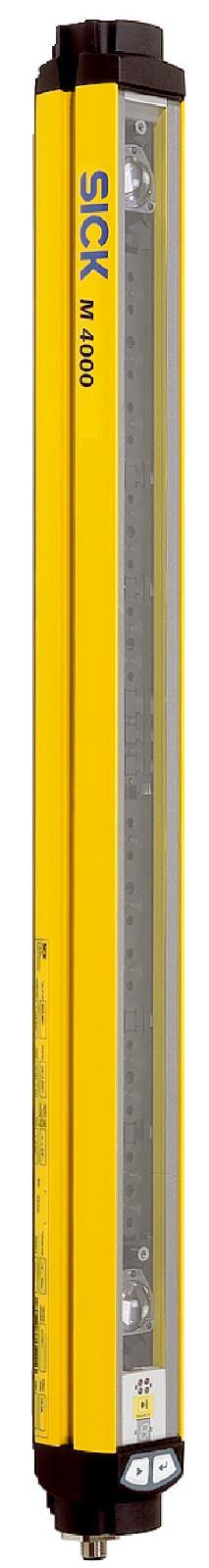

SICK M4000 4 Beams Sender Safety Light Curtain M40S-043000AR0 (1200006

SICK M4000 4 Beams Sender Safety Light Curtain M40S-043000AR0 (1200006

$1,499.00
$1,499.00
Sale Sold out
Shipping calculated at checkout.
7% discount if you purchase directly from us on internet Australian Empire shop Discount code (empire7)
Scanning range 0.5 m ... 70 m, configurable
Low scanning range 0.5 m ... 20 m
Great scanning range 9 m ... 70 m
Number of beams 4
Beam separation 300 mm
Response time 10 ms
Synchronization Optical synchronisation
Specialty Without additional options
Type Type 4 (IEC 61496-1)
Safety integrity level SIL 3 (IEC 61508)
Category Category 4 (EN ISO 13849)
Performance level PL e (EN ISO 13849)
PFHD (mean probability of a dangerous failure per hour) 6.6 x 10-9 (EN ISO 13849)
TM (mission time) 20 years (EN ISO 13849)
Safe state in the event of a fault At least one OSSD is in the OFF state.

System connection Male connector M12, 8-pin
Permitted cable length 15 m 1)
Permitted cross-section ≥ 0.25 mm²
Configuration method Configuration buttons
Display elements

LEDs

7-segment display
Protection class III (IEC 61140)
Supply voltage VS 24 V DC (19.2 V DC ... 28.8 V DC) 1)
Residual ripple ≤ 10 % 2)
Power consumption ≤ 0.2 A
Protection class III (IEC 61140)
Supply voltage VS 24 V DC (19.2 V DC ... 28.8 V DC) 1)
Residual ripple ≤ 10 % 2)
Power consumption ≤ 0.2 A
Enclosure rating IP65 (EN 60529)
Ambient operating temperature –30 °C ... +55 °C
Storage temperature –30 °C ... +70 °C
Air humidity 15 % ... 95 %, Non-condensing
Shock resistance 10 g, 16 ms (IEC 60068-2-29)
