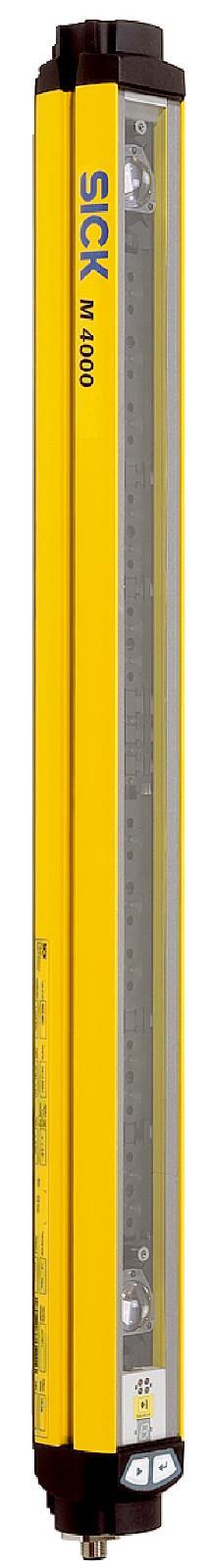

SICK M4000 6 Beams Receiver Safety Light Curtain M40E-062200RR0 (1200025

SICK M4000 6 Beams Receiver Safety Light Curtain M40E-062200RR0 (1200025

$1,999.00
$1,999.00
Sale Sold out
Shipping calculated at checkout.
7% discount if you purchase directly from us on internet Australian Empire shop Discount code (empire7)
TypeType 4 (IEC 61496-1)Safety integrity levelSIL 3 (IEC 61508)CategoryCategory 4 (EN ISO 13849)Performance levelPL e (EN ISO 13849)PFHD (mean probability of a dangerous failure per hour)6.6 x 10-9 (EN ISO 13849)TM (mission time)20 years (EN ISO 13849)Safe state in the event of a faultAt least one OSSD is in the OFF state.
nclosure rating IP65 (EN 60529)
Ambient operating temperature –30 °C ... +55 °C
Storage temperature –30 °C ... +70 °C
Air humidity 15 % ... 95 %, Non-condensing
Shock resistance 10 g, 16 ms (IEC 60068-2-29)
Protection class III (IEC 61140)
Supply voltage VS 24 V DC (19.2 V DC ... 28.8 V DC) 1)
Residual ripple ≤ 10 % 2)
Power consumption ≤ 0.6 A 3)
Output signal switching devices (OSSDs) 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 4)
ON state, switching voltage HIGH 24 V DC (VS – 2.25 V DC ... VS)
OFF state, switching voltage LOW ≤ 2 V DC
Current-carrying capacity per OSSD ≤ 500 mA

1) The external voltage supply must be capable of buffering brief mains voltage failures of 20 ms as specified in EN 60204-1. Suitable power supplies are available as accessories from SICK.

2) Within the limits of VS.

3) Without load.

4) Applies to the voltage range between –30 V and +30 V.

Beam coding ✔ Uncoded
Sender test ✔ Deactivated
Configurable scanning range ✔

System connection Male connector M12, 8-pin
Permitted cable length 15 m 1)
Permitted cross-section ≥ 0.25 mm²
Configuration method Configuration buttons
Display elements

LEDs

7-segment display

EU declaration of conformity ✔
UK declaration of conformity ✔
ACMA declaration of conformity ✔
MAR declaration of conformity ✔
China-RoHS ✔
ULus approval ✔
cUL approval ✔
EC-Type-Examination approval ✔


Without additional options
