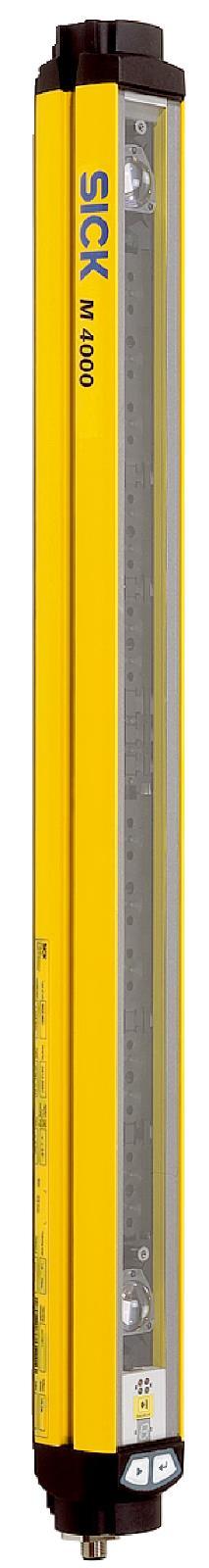

SICK M4000 6 Beams Sender Safety Light Curtain M40S-062200AR0 (1200008

SICK M4000 6 Beams Sender Safety Light Curtain M40S-062200AR0 (1200008

$999.00
$999.00
Sale Sold out
Shipping calculated at checkout.
7% discount if you purchase directly from us on internet Australian Empire shop Discount code (empire7)
Scanning range		 0.5 m ... 70 m, configurable
Low scanning range 0.5 m ... 20 m
Great scanning range 9 m ... 70 m
Number of beams 6
Beam separation 220 mm
Response time 10 ms
Synchronization Optical synchronisation
TypeType 4 (IEC 61496-1)Safety integrity levelSIL 3 (IEC 61508)CategoryCategory 4 (EN ISO 13849)Performance levelPL e (EN ISO 13849)PFHD (mean probability of a dangerous failure per hour)6.6 x 10-9 (EN ISO 13849)TM (mission time)20 years (EN ISO 13849)Safe state in the event of a faultAt least one OSSD is in the OFF state.
nclosure rating IP65 (EN 60529)
Ambient operating temperature –30 °C ... +55 °C
Storage temperature –30 °C ... +70 °C
Air humidity 15 % ... 95 %, Non-condensing
Shock resistance 10 g, 16 ms (IEC 60068-2-29)

Beam coding ✔ Uncoded
Sender test ✔ Deactivated
Configurable scanning range ✔

System connection Male connector M12, 8-pin
Permitted cable length 15 m 1)
Permitted cross-section ≥ 0.25 mm²
Configuration method Configuration buttons
Display elements

LEDs

7-segment display

EU declaration of conformity ✔
UK declaration of conformity ✔
ACMA declaration of conformity ✔
MAR declaration of conformity ✔
China-RoHS ✔
ULus approval ✔
cUL approval ✔
EC-Type-Examination approval ✔


Without additional options
