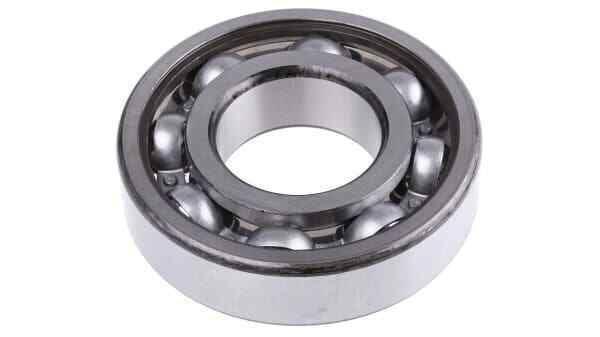

SKF 6309 Deep Groove Ball Bearing Type, 45mm I.D, 100mm O.D 25 MM GALLIGNANI

SKF 6309 Deep Groove Ball Bearing Type, 45mm I.D, 100mm O.D 25 MM GALLIGNANI

Regular price $79.87
Regular price Sale price $79.87
Sale Sold out
Shipping calculated at checkout.

AUSTRALIAN EMPIRE SHOP

Special PRICE!

High Quality
Fast Shipping
Custom Orders
SKF 6309 Deep Groove Ball Bearing Type, 45mm I.D, 100mm O.D 25 MM GALLIGNANI
Product Details
Deep Groove Metric Ball Bearings - Open

SKF deep groove ball bearings are the most common type of rolling bearings. Available in a variety of metric sizes and found in a wide range of applications in many industries.


Features and Benefits

Accepts radial and axial loads
High speed operation
Primarily intended for applications where the bearing inner ring rotates
If the outer ring rotates there is a danger that grease may be lost from the bearing at high speeds


Specifications
Attribute Value
Inside Diameter 45mm
Outside Diameter 100mm
Ball Bearing Type Deep Groove
Race Width 25mm
End Type Open
Number of Rows 1
Static Load Rating 31.5kN
Material Steel
Cage Material Steel
Race Type Plain
Dynamic Load Rating 55.3kN
Bore Type Parallel
