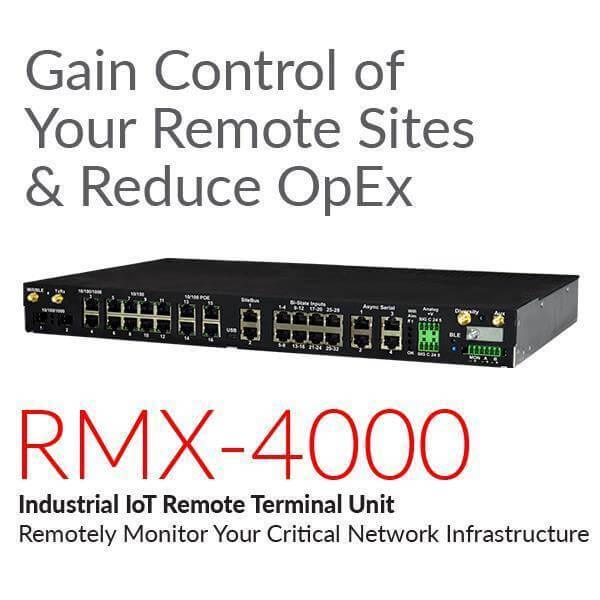

WESTELL T-RMX-4200-B24 REMOTE TERMINAL UNIT RMX-4000 W/O WIFI/BT

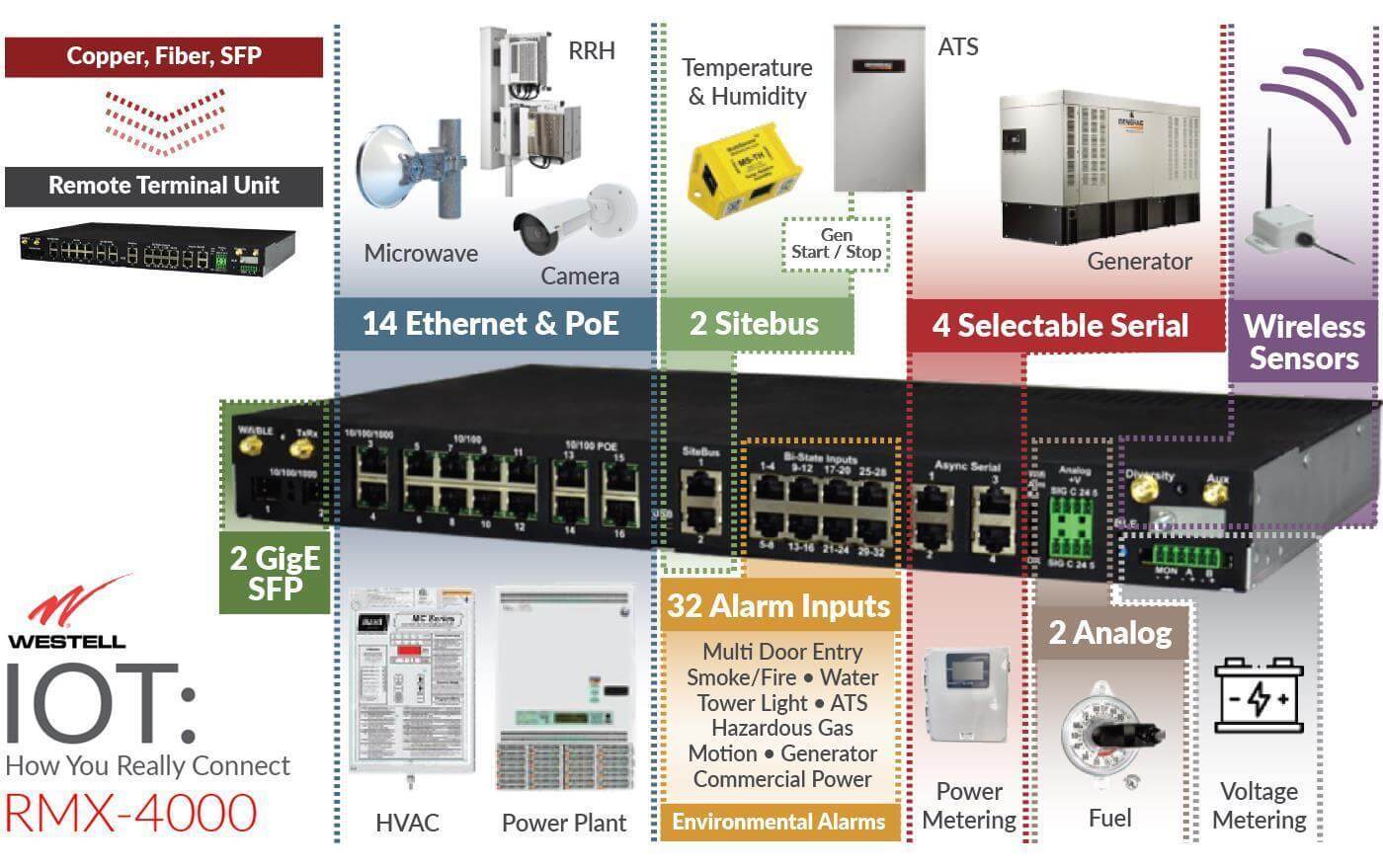

General Description The Remote RMX-4000 is Westell’s next-generation site management platform that builds on and extends the IoT capabilities of Westell’s Intelligent Site Management solutions for monitoring. The Remote RMX-4000 enables site alarm monitoring, intelligent protocol conversion, wireless device aggregation, and equipment connectivity, acting as a smart extension of your Operations Support Systems (OSS). It is designed to enhance your network management strategy, reduce operational costs, and improve operational efficiency with reduced truck rolls. The RMX-4000, a highly integrated site management solution, includes four serial, 14 Ethernet, and 34 I/O ports and 2 SFP slots, as well as extensibility via Westell’s SiteBus™ sensor network and RMB and RME expansion units. It provides PoE power for up to four 802.3af-compliant PoE powered devices, such as Westell’s RMB series of alarm collectors, IP cameras, or other devices. In total, the RMX-4000 can support up to 12 RME/RMB expansion modules, providing port capacity for any situation. The RMX-4000 also supports options for WiFi, 900Mhz sensor connectivity, and wireless configuration via mobile applications. These new device aggregation capabilities support new applications and simplified installation processes previously unattainable with traditional site management systems. As with all products in the Westell Remote product line, the RMX4000 performs protocol mediation and interface conversion, collects alarms and performance data, and supports bi-directional management control with Westell’s Optima Management System® via Ethernet, Fiber, or wireless communication options. Together, the Remote RMX-4000 and Optima provide detailed monitoring, remote control, and management for virtually all remote site devices. Remote RMX-4000 The Remote RMX-4000 provides IP network connectivity for site management and alarm monitoring. Product Highlights • Capacity flexibility and scalability for any size site • Integrated fiber WAN and 4G LTE connectivity options • 4 PoE ports for extensive expansion, site security, and other applications • SiteBus for low-cost sensor support and relay output expansion • Next-generation connectivity options for wireless sensors and systems • Easy-to-use GUI with Optima • Advanced equipment management and protocol conversion • Custom application extension support • Flexible IP network connectivity including wireless networking options Page 1 of 2 Remote RMX-4000 Copyright © 2019 by Westell, Inc. All Rights Reserved. Westell, ClearLink, Kentrox, and Optima Management System are registered trademarks of Westell, Inc. All other names are trademarks of their respective owners. Information is correct at time of printing and is subject to change without notice. Westell, Inc. is an Equal Opportunity/Affirmative Action employer. WESTELL.COM ISM-RMX-4000-DS-031519 Remote RMX-4000 Page 2 of 2 Ordering information Remote RMX-4000 Remote RMX-4000 system with WiFi Remote RMX-4048 Remote RMX-4000 system with WiFi and global 4G LTE Remote RMX-4100 Remote RMX-4000 system with WiFi and 900Mhz sensor support (USA) Remote RMX-4148 Remote RMX-4000 system with WiFi, 900Mhz sensor support (USA), and global 4G LTE RMX-4000 supported protocols DHCP (server, client, relay) / DNS / NTPv4 HTTPS / SFTP / SSHv2 / Telnet Internet Protocol version 4 (IPv4) and version 6 (IPv6) / NAT64 IPSec / OpenVPN Serial protocols RS232, RS485 / TBOS SNMP (v1, v2c, v3) / TL1 / Web API Spanning Tree (IEEE 802.1d) TACACS+ AAA / RADIUS RMX-4000 management and management access Command Line Interface (CLI) Web-based user interface administration Console port local access Wizard configuration support Optima Managment System Support Remote suite of products overview Product SFP 10/100/1000 Ethernet Ports Async Ports Discrete Ports Control Outputs 0-10 VDC Inputs 4-20 mA Inputs 1-wire SiteBus WiFi Wireless Sensors Input Power RMX-4000 2 2 10/100/1000 12 10/100 (4 PoE) 4A 32 -- Up to 2B Up to 2B 2 Yes Yes +/- 20-60 VDC RMX-3200 2C 8 (2 PoE) 8D 64 4 Up to 12E Up to 12E YesF No No +/- 20-60 VDC RMM-800 2 2 10/100/1000 2G 16 1 Up to 1H Up to 1H 1 No No +/- 20-60 VDC RMM-1400 -- 4 (2 PoE) 4I YesF YesF YesF YesF YesF No No +/- 20-60 VDC RMC-700 -- 2 10/100 2G 12 1 Up to 1J Up to 1J 1 No No +/- 20-60 VDC AAll RMX-4000 async ports operate in RS232 or RS485 mode BThe 2 RMX-4000 analog inputs are configurable for voltage or current CRequires RMX-WGBE-40 expansion module DThe 8 RMX-3200 async ports operate in RS232, RS422, or RS485 mode EThe 12 RMX-3200 analog inputs are configurable for voltage or current FRequires the use of RMB-1B, RMB-2, or RMB-3 GOne port is RS232 and one port is RS422/RS485 HThe 1 RMM-800 analog input is configurable as either voltage or current I 2 RMM-1400 async ports operate in RS232 and 2 ports operate in RS422/RS485 mode J The 1 RMC-700 analog input is configurable as either voltage or current
