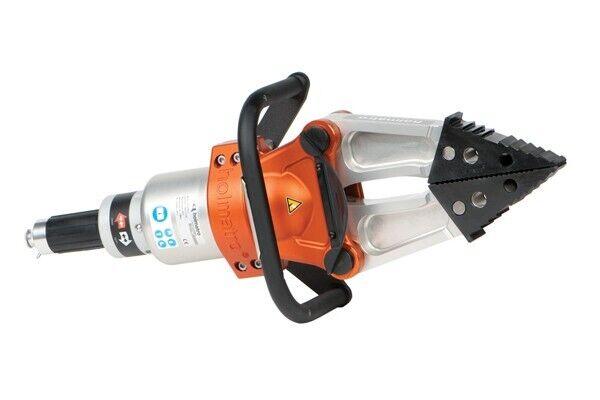

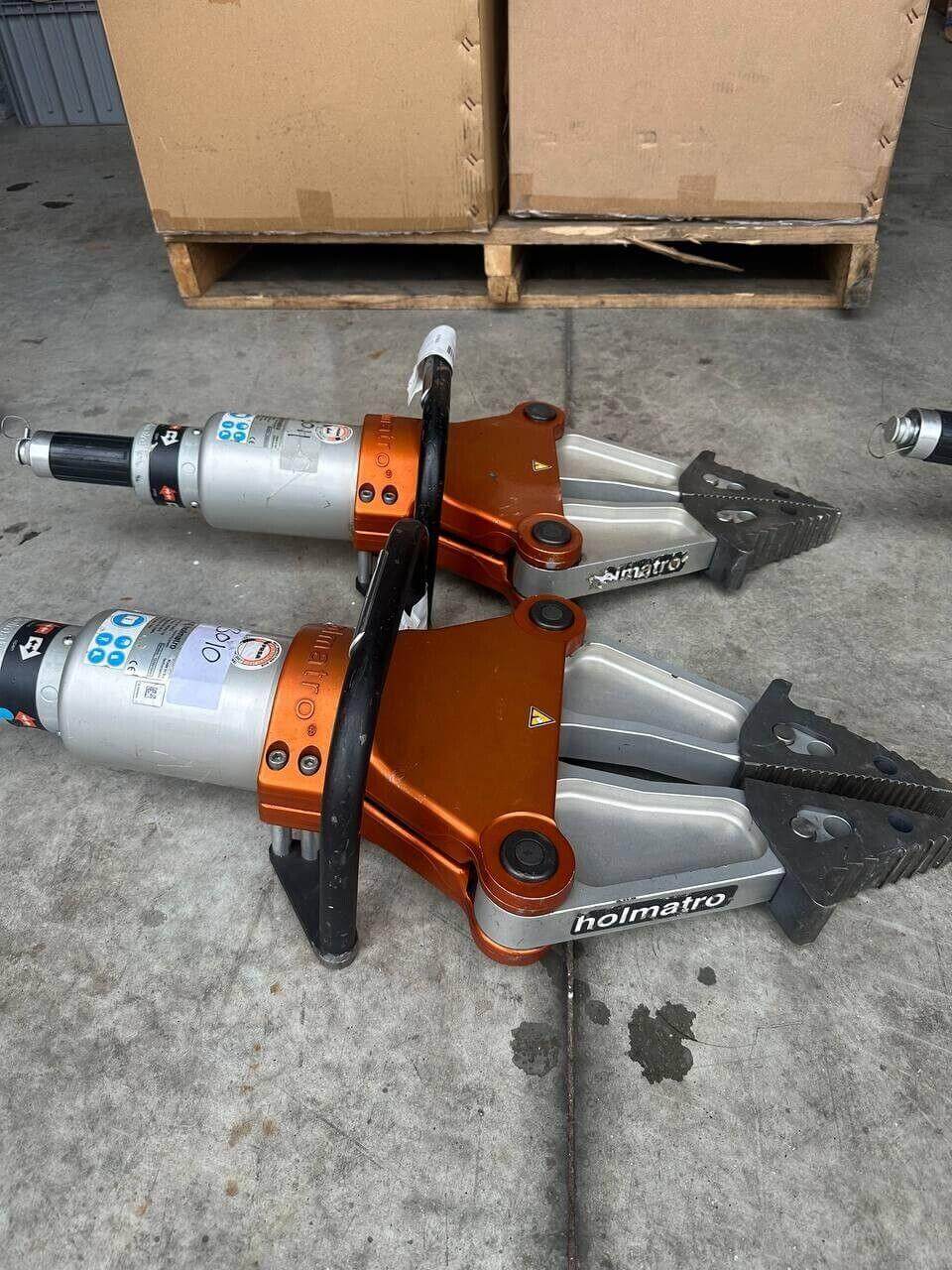

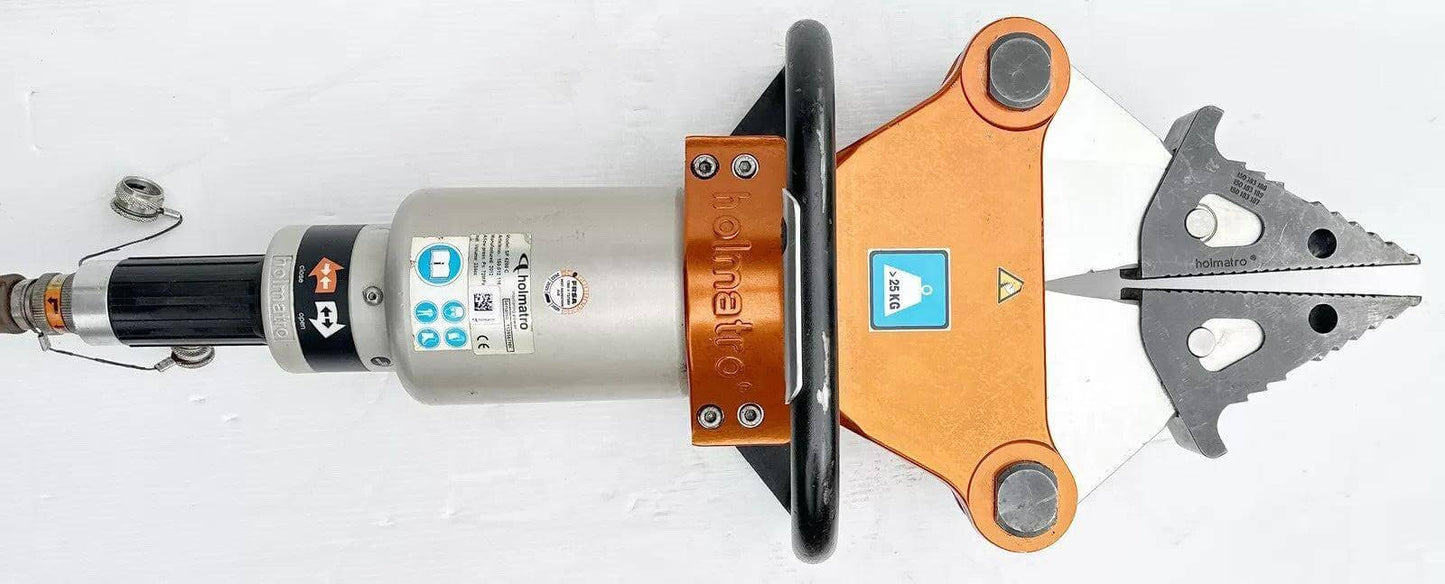

Holmatro SP 4260 C hydraulic Spreader (2014) 6 Months Warranty

CORE Technology
• Quicker (saves time)
• Safer (more user-friendly)
• Easier (allows more efficient use of manpower)

Standard equipped with unique Speed Valve
• Allows for faster, more efficient tool placement and thus shortens required extrication time
• Increases opening speed of the arms when working pressure is below 150 bar: tools open up to 65% quicker

• Never work in your own shadow again
• Have your own light source when rescue scene lighting is absent (e.g. in rapid intervention situations)
• LEDs work appr. 6 hours on 1 standard AA battery

Multifunctional
• Spreading
• Pulling (with optional pulling accessories)
• Squeezing
• Cutting (with optional cutting tips)

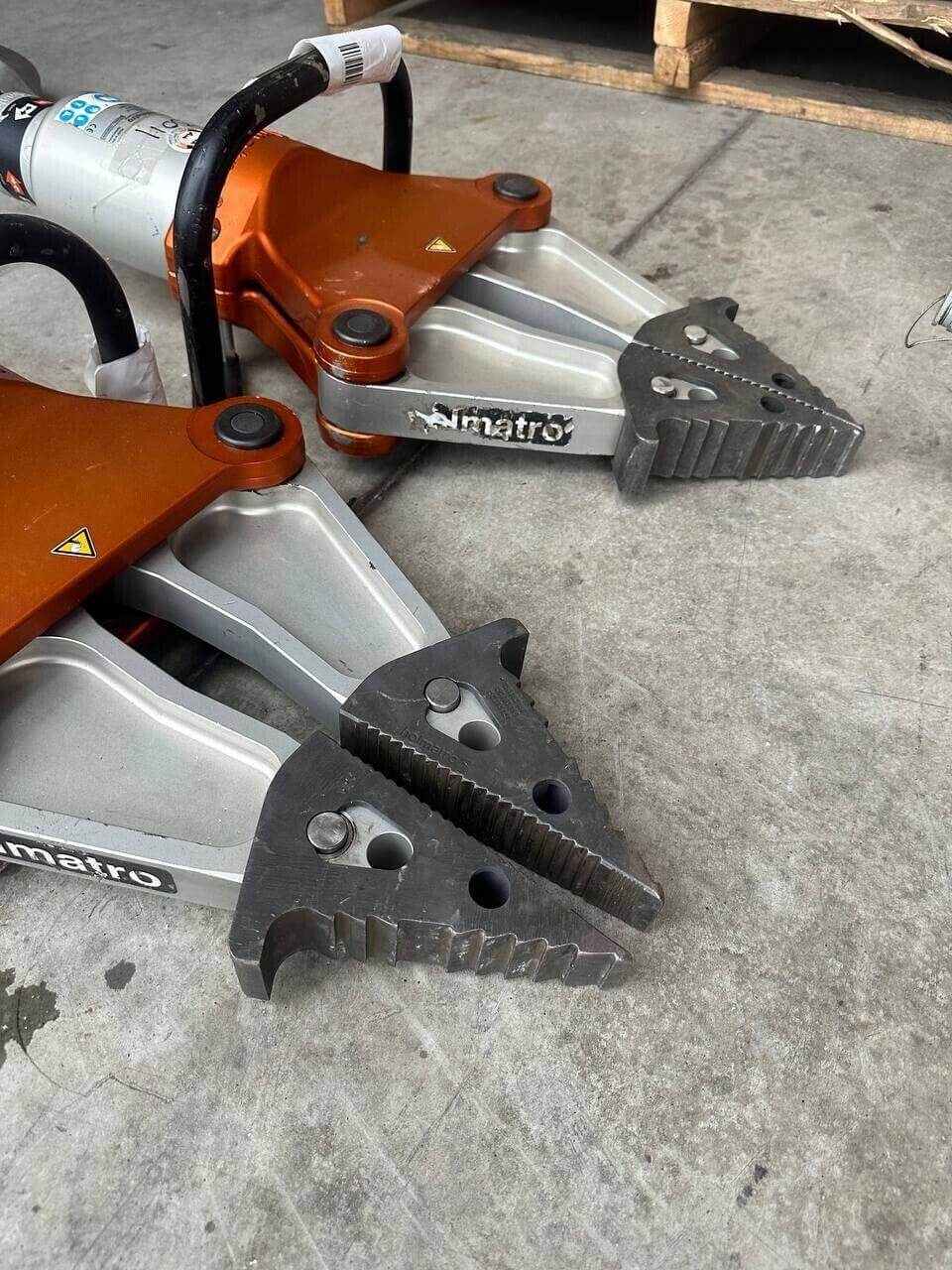

Interchangeable tips
• Can be changed without tools in a second
• No loose parts that can get lost
• Well-serrated spreading tips for perfect grip during spreading and squeezing
• Sharp cutting tips with optimal angle

Slim arm and yoke design
• Easy penetration in confined spaces

Safe and user-friendly deadman’s handle
• Only black part rotates
• Accurate spring return to neutral position
• Precise proportional operation
• Max. rotation to the right and to the left only 22°

Non-slip carrying handle
• For a perfect grip under all circumstances

Article number	150.012.105
Basic specifications
Model	SP 4240 C
Equipped with (connector type)	CORE
Max. working pressure	720 / 72 (bar/Mpa)	10443 psi
Performance
Max. spreading force	206 / 21 (kN/t)
Max. pulling force	90 / 9.2 (kN/t)
Spreading distance	686 mm	27 in
Max. squeezing force Sq1	65 / 6.6 (kN/t)	14613 lbf
Dimensions, weight and temperature
Weight, ready for use	18.1 kg	39.9 lb
Dimensions (LxWxH)	771 x 316 x 206 mm	30.4 x 12.4 x 8.1 in
Norms
EN 13204	AS43/686-18.1
NFPA 1936	No
UL listed	No
