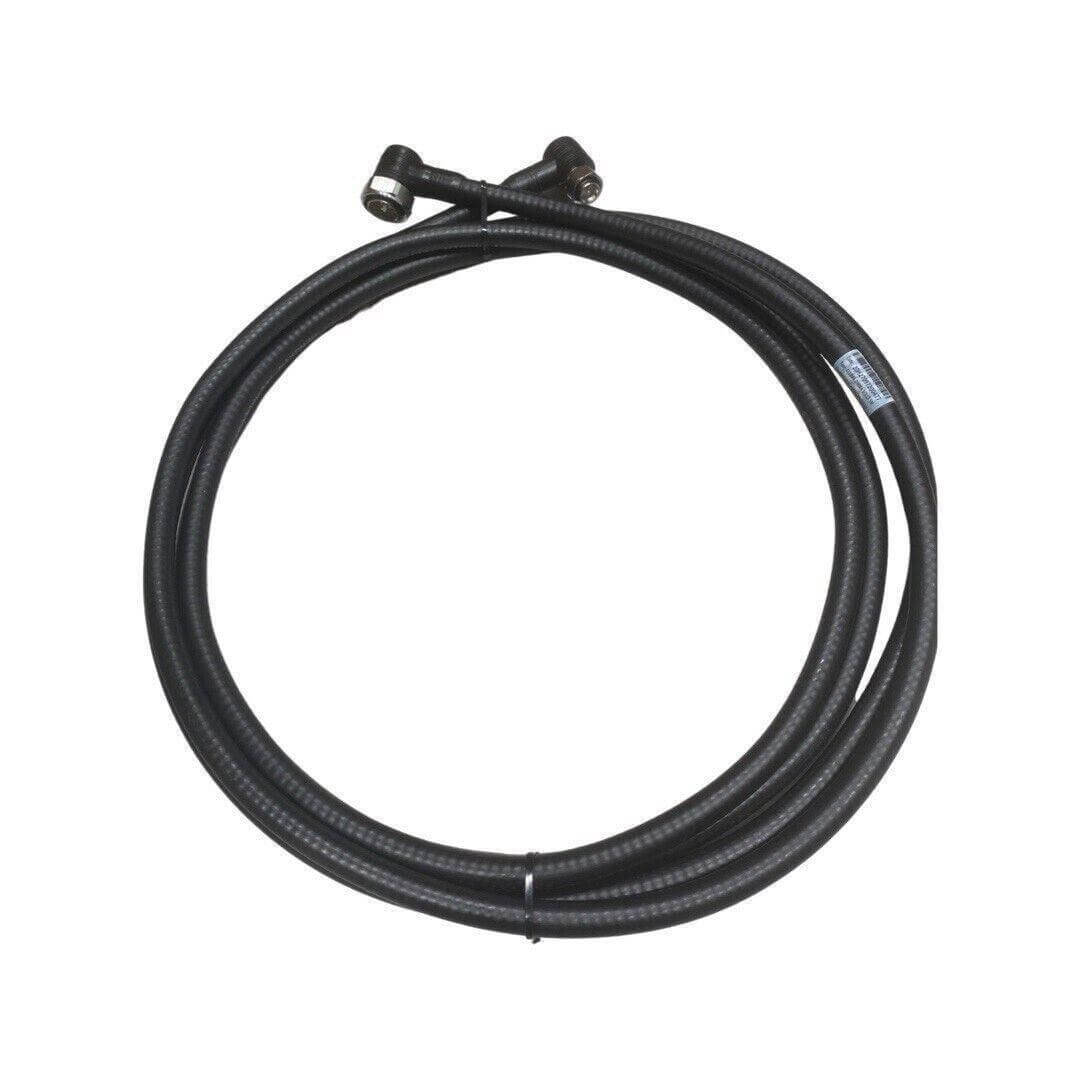

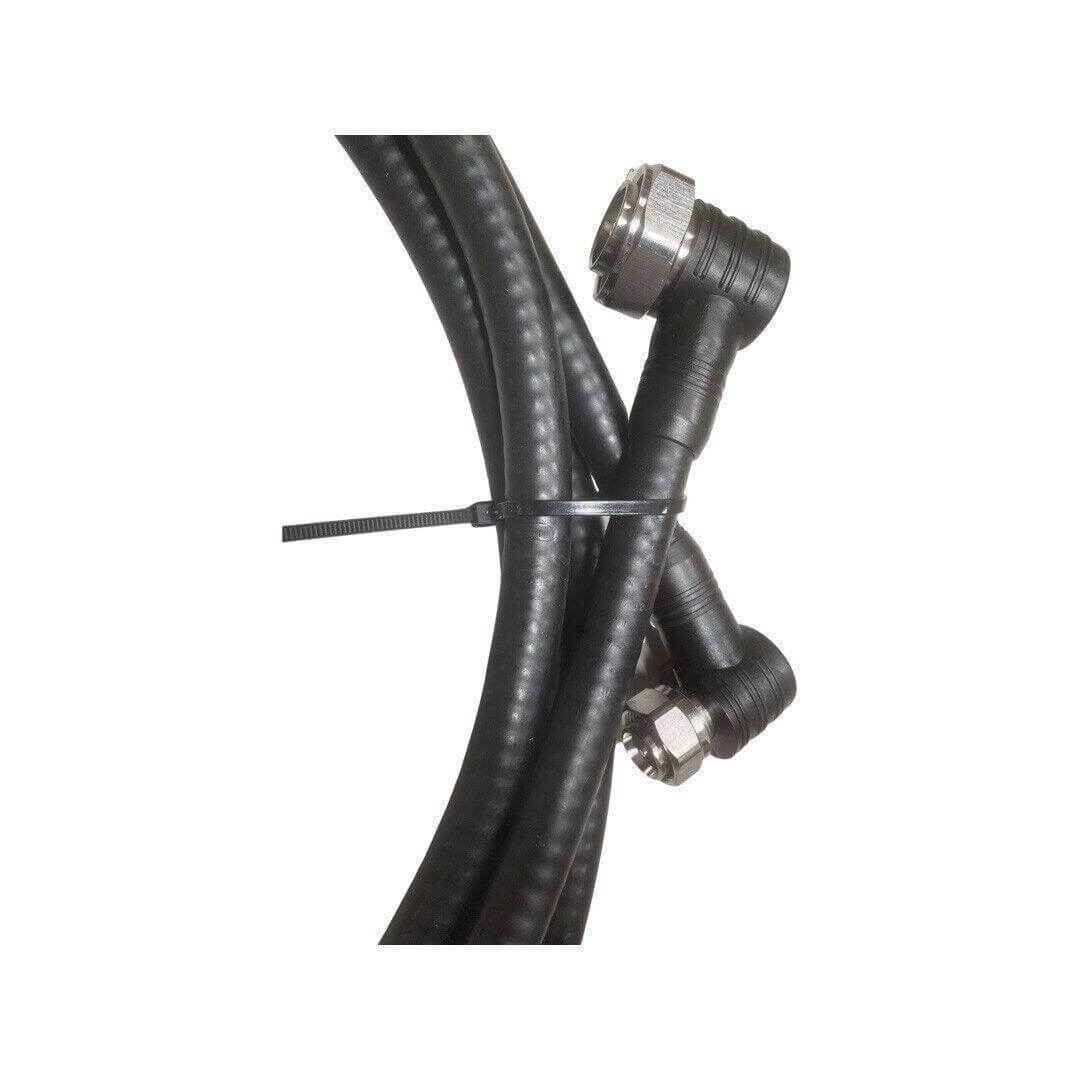

RF Coaxial Jumper Cable LCF 1/2 ,5M 4310 Male Angel-DIN Male Angel Hengxin

Premium High Frequency RF Signal Cable

Reliable RF Performance for Professional Communication Systems

The RF Coaxial Jumper Cable is engineered for high-performance RF signal transmission where reliability, low attenuation, and stable connectivity are critical. Designed with advanced low-loss technology and premium-grade materials, this cable delivers exceptional signal integrity across demanding communication, testing, and wireless network environments.

Supporting a frequency range from DC to 6GHz, the cable is ideal for RF communication systems, antenna installations, telecommunications infrastructure, and signal measurement applications. The RF Coaxial Jumper Cable features a durable waterproof construction with IP68 protection, ensuring dependable operation even in harsh outdoor and industrial environments.

Key Benefits of This Product

1. Superior Signal Transmission

Designed with low insertion loss and optimized impedance control to maintain strong and stable RF signal performance.

2. High Frequency Support up to 6GHz

Perfect for advanced RF communication systems, telecommunications equipment, and precision testing applications.

3. Rugged Waterproof Construction

The product is IP68 rated for reliable operation in outdoor, wet, and industrial environments.

4. Excellent Electrical Stability

Low VSWR and ultra-low PIM performance help reduce interference and improve overall transmission efficiency.

5. Built for Long-Term Durability

Constructed to withstand demanding operating temperatures, mechanical stress, and continuous industrial use.

Features & Specifications

Electrical Specifications

• Impedance: 50 Ohm
• Frequency Range: DC to 6GHz
• Insulation Resistance: ≥5000MΩ
• Withstand Voltage: 2500V rms (DC)
• Operating Voltage: 1500Vrms
• Insertion Loss: ≤0.14*L+0.2dB
• VSWR @0.8–1.0GHz: ≤1.10
• VSWR @1.7–3.0GHz: ≤1.13
• PIM3 @1800MHz: ≤-155dBc

Environmental & Mechanical Performance

The RF Coaxial Jumper Cable is built for harsh industrial and outdoor conditions with:

• Tensile Resistance: ≥500N
• Waterproof Rating: IP68
• Operating Temperature: -45°C to +85°C
• Storage Temperature: -45°C to +65°C
• Torque Proof: 5N·m
• RoHS Compliance

Low Loss RF Design

Advanced construction minimizes signal attenuation while maximizing transmission quality across high-frequency applications.

Industrial-Grade Durability

Engineered with robust materials for long-term resistance against moisture, environmental exposure, and physical stress.

Professional RF Connectivity

The RF Coaxial Jumper Cable is ideal for maintaining stable connections in critical RF systems where precision matters.

Why Customers Choose This RF Cable

Technicians, RF engineers, network installers, and telecommunications professionals choose this cable because it delivers dependable signal transmission with low interference and excellent durability. Its waterproof protection, high-frequency support, and low-loss characteristics make it a trusted solution for professional RF connectivity applications.

The RF Coaxial Jumper Cable provides reliable performance for indoor and outdoor installations where uninterrupted signal quality is essential.

Recommended Applications

Ideal For:

• RF communication systems
• Wireless infrastructure installations
• Antenna and base station connections
• Telecommunications equipment
• RF testing and measurement
• Broadcast and signal transmission systems

The RF Coaxial Jumper Cable is specifically designed for professionals requiring high-performance RF connectivity with superior reliability and environmental protection.

Care & Maintenance

• Avoid excessive bending during installation
• Store in a clean, dry environment
• Inspect connectors periodically
• Clean with non-abrasive materials only

Proper handling and maintenance will help maximize the service life and efficiency of the product.
