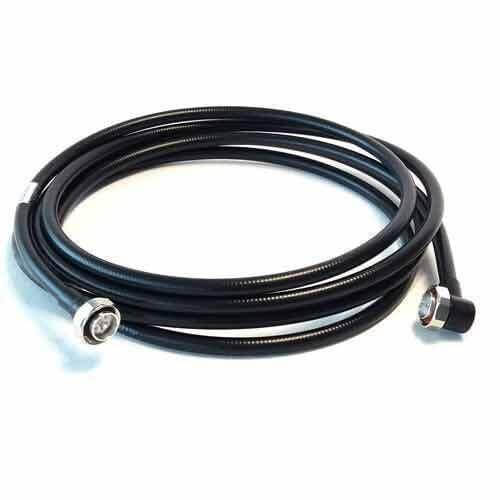

Hengxin Right Angle RF Signal Transmission Cable

Reliable High-Frequency Connectivity for Professional RF Systems

The RF Coaxial Jumper Cable is engineered for high-performance RF signal transmission in telecommunications, broadcasting, wireless infrastructure, and testing applications. Designed with precision-engineered DIN male right-angle connectors, this cable provides dependable connectivity while reducing installation space requirements in compact environments.

Manufactured with premium conductive materials and low-loss insulation technology, the cable ensures stable signal integrity and reduced attenuation across frequencies up to 6GHz. The RF Coaxial Jumper Cable delivers professional-grade durability with IP68 waterproof protection, making it suitable for demanding indoor and outdoor installations.

Key Benefits of This Product

1. Superior Signal Stability

Designed with low-loss construction to maintain strong and reliable RF signal performance in critical communication systems.

2. Space-Saving Right Angle Connectors

Right-angle DIN male connectors help simplify installations in tight or restricted equipment spaces.

3. Durable IP68 Waterproof Protection

The RF Coaxial Jumper Cable is engineered for harsh environments with excellent resistance against water, dust, and outdoor conditions.

4. High Frequency Performance

Supports RF transmission from DC to 6GHz for telecommunications, broadcasting, and testing applications.

5. Reliable Long-Term Operation

Built with corrosion-resistant connectors and industrial-grade shielding for dependable use in professional RF environments.

Features & Specifications

Premium Material Construction

Manufactured using:

• Copper or copper-plated inner conductors
• Low-loss PTFE dielectric insulation
• Braided shielding for EMI protection
• Corrosion-resistant plated connectors

Technical Specifications

• Cable Length: 2.38 Meters (7.81 Feet)
• Impedance: 50 Ohm
• Frequency Range: DC to 6GHz
• Operating Voltage: 1500Vrms
• Insulation Resistance: ≥5000MΩ
• Waterproof Rating: IP68
• RoHS Compliant

Low Loss RF Performance

The RF Coaxial Jumper Cable minimizes insertion loss and signal reflection for enhanced RF transmission efficiency.

Excellent Electrical Characteristics

• VSWR ≤1.10 @0.8–1.0GHz
• VSWR ≤1.13 @1.7–3.0GHz
• Insertion Loss ≤0.14*L + 0.2dB

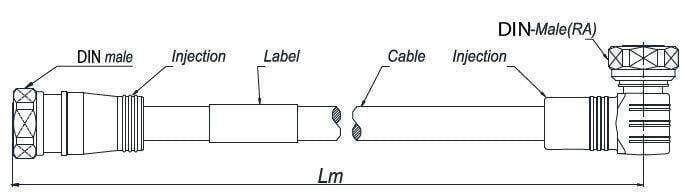

Right Angle DIN Male Connectors

Designed to improve cable management and reduce strain in compact RF system installations.

Why Professionals Choose This Cable

RF technicians, network engineers, and communication system installers choose this cable for its reliable electrical performance, compact connector design, and durable waterproof construction. It offers dependable signal integrity while maintaining compatibility with professional RF infrastructure and telecommunications systems.

The RF Coaxial Jumper Cable is an excellent solution for users seeking long-lasting performance and stable connectivity without compromising installation flexibility.

Recommended Applications

Ideal For:

• RF communication systems
• Telecommunications infrastructure
• Broadcast equipment installations
• RF testing laboratories
• Wireless network setups
• Outdoor antenna systems

The RF Coaxial Jumper Cable is specifically designed for professional applications where reliable RF signal transmission and durable environmental protection are essential.

Care & Maintenance

• Clean connectors using a soft dry cloth
• Avoid harsh chemicals or abrasive cleaners
• Inspect regularly for physical wear or corrosion
• Store in a cool and dry environment when not in use

Proper maintenance helps maximize the lifespan and performance of the product.
